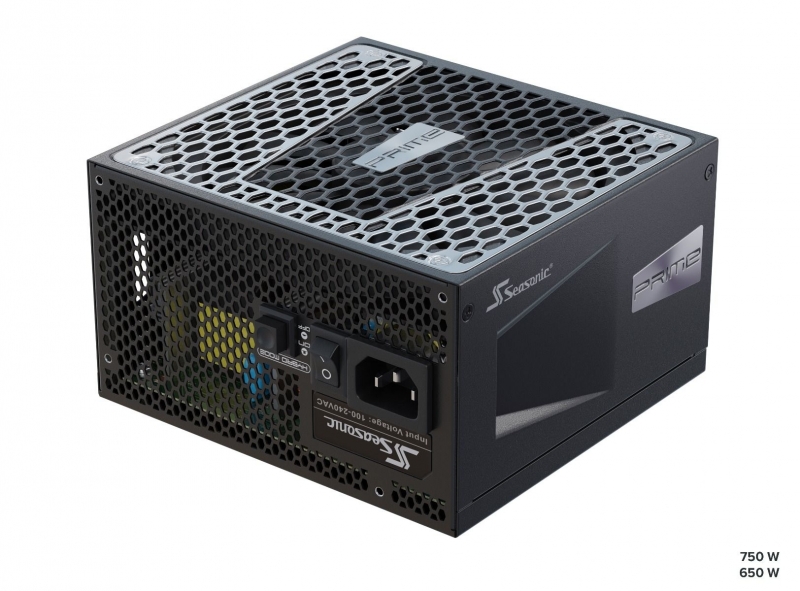

    SeaSonic 650W PRIME PX-650 Platinum PSU (SSR-650PD2) (OneSeasonic)

    $263.00
    SKU:370310
    MPN:PSUSEAPRIMEPX650-1
    Manufacturer:https://seasonic.com/
    Brand: Seasonic
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1

    The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.

    • 80 PLUS® Platinum certified
    • Micro Tolerance Load Regulation (0.5 %)
    • Cable-free Connection Design
    • Premium Hybrid Fan Control - Fanless until 40 % load
    • Multi-GPU setup
    • Gold plated connectors
    • 12 years warranty
    Technical Specifications
    80PLUS® Platinum
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12 V
    Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 135 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 150,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 12 Years
    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 9 - 4.5 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 20 A 20 A 54 A 0.3 A 3 A
    100 W 648 W 3.6 W 15 W
    Total continuous power 650 W
