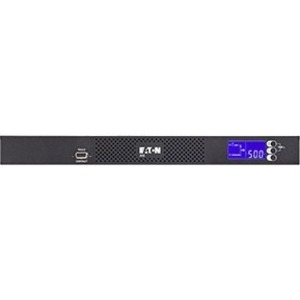

    Eaton ATS w/Serial Port - (2)C20 16A Input, (8)C13, (1)C19 Outlets EATS16

    $1,272.00
    SKU:385581
    MPN:EATS16 Link
    Manufacturer:https://www.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Eaton ATS w/Serial Port - (2)C20 16A Input, (8)C13, (1)C19 Outlets

    GENERAL SPECIFICATIONS

    PRODUCT NAME
    Eaton ATS rack PDU
    CATALOG NUMBER
    EATS16
    UPC
    743172079404
    PRODUCT LENGTH/DEPTH
    430 mm
    PRODUCT HEIGHT
    43 mm
    PRODUCT WIDTH
    250 mm
    PRODUCT WEIGHT
    3.3 kg
    WARRANTY
    2 year
    COMPLIANCES
    CE Marked
    CERTIFICATIONS
    CE

    PRODUCT SPECIFICATIONS

    NUMBER OF OUTPUTS C13
    8
    PHASE
    Single-phase
    ELECTRICAL CONNECTION
    Connecting cord with plug
    MOUNTING DIMENSION (STANDARDIZED)
    482.6 mm (19 inch)
    WATTAGE
    3.84 kW max
    FORM FACTOR
    1U
    MOUNTING DIRECTION
    Horizontal
    NUMBER OF OUTPUTS C20
    2
    AMPERAGE RATING
    16A
    PACKAGE CONTENTS
    ATS
    Quickstart guide
    Safety instructions
    (2) Input cables: C19-C20 1.8m
    (2) Input cable lockers
    Plastic strips for output locking
    RS-232 serial cable
    Accessories for rack installation
    INPUT CONNECTION
    (2) C20
    FITTED WITH:
    Display
    Ampere Meter
    LED indication
    Mounting material
    FREQUENCY RATING
    50/60 Hz
    EVALUATION
    Local
    OPERATING TEMPERATURE
    0° to 40°C (32° to 104°F)
    ETHERNET INTERFACE
    No
    NUMBER OF OUTLETS WITH EARTH PIN
    9
    MASS CONFIGURATION
    No
    COMMUNICATION
    No
    SPECIAL FEATURES
    Provides power redundancy to IT equipment
    Alternative to expensive redundant power supplies available from networking equipment vendors
    Compact, 1U rack form factor
    Seamlessly switches from one power source to the other
    LCD with metering and basic configuration capabilities
    NUMBER OF OUTPUTS C19
    1
    OUTLET CONTROL
    No
    SWITCHABLE
    No
    CORD LENGTH
    2m
    INPUT VOLTAGE
    200-240V
    COLOR
    Black
    SNMP
    No
    OVER VOLTAGE CATEGORY
    2
    OUTLETS
    (8) C13, (1) C19
    TYPE
    ATS
    SERIAL INTERFACE
    No
    MOUNTING DIMENSION (METRICAL)
    43
