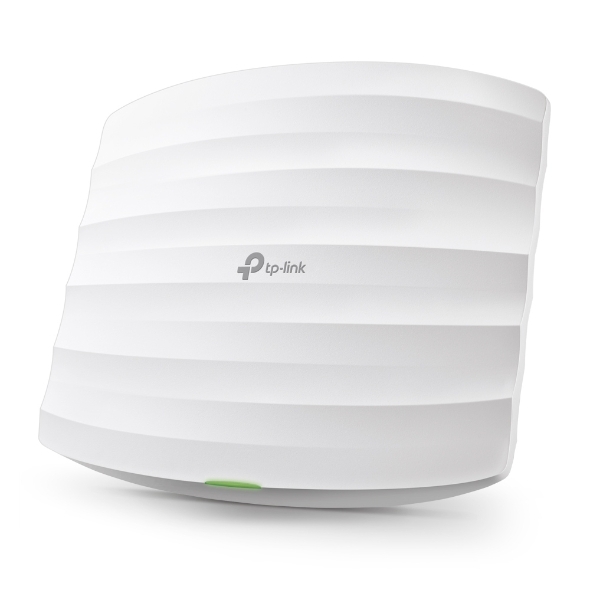

    TP-Link AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point, 1 Gigabit RJ45 Port, 450 Mbps at 2.4 GHz + 867 Mbps at 5 GHz, 5-Year WTY EAP223

    $87.00
    SKU:395383
    MPN:EAP223 Link
    Manufacturer:https://www.tp-link.com
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    HARDWARE FEATURES
    Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
    Physical Security Lock Yes
    Button Reset
    Power Supply • 802.3af/at PoE
    • 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
    Power Consumption EU: 9.7W
    US: 12.1W
    Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
    Antenna Type 3 Internal Omni
    • 2.4 GHz: 4 dBi
    • 5 GHz: 5 dBi
    Mounting Ceiling /Wall Mounting (Kits included)
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11ac/n/g/b/a
    Frequency 2.4 GHz and 5 GHz
    Signal Rate • 5 GHz:Up to 867 Mbps
    • 2.4 GHz:Up to 450 Mbps
    Wireless Functions • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • Seamless Roaming*
    • Omada Mesh*
    • Band Steering
    • Load Balance
    • MU-MIMO
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
    Wireless Security • Captive Portal Authentication*
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    Transmission Power • CE:
    ≤20 dBm(2.4 GHz, EIRP)
    ≤23 dBm(5 GHz, EIRP)
    • FCC:
    ≤24 dBm(2.4 GHz)
    ≤22 dBm(5 GHz)
    MANAGEMENT
    Omada App Yes
    Centralized Management • Omada Hardware Controller OC300
    • Omada Hardware Controller OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller
    Cloud Access Yes, through
    • OC300
    • OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1,v2c
    System Logging Local/Remote Syslog Local/Remote Syslog
    SSH Yes
    Web-based Management HTTP/HTTPS
    L3 Management Yes
    Multi-site Management Yes
    Management VLAN Yes
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
    • Mounting Kits
    • Installation Guide
    System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
