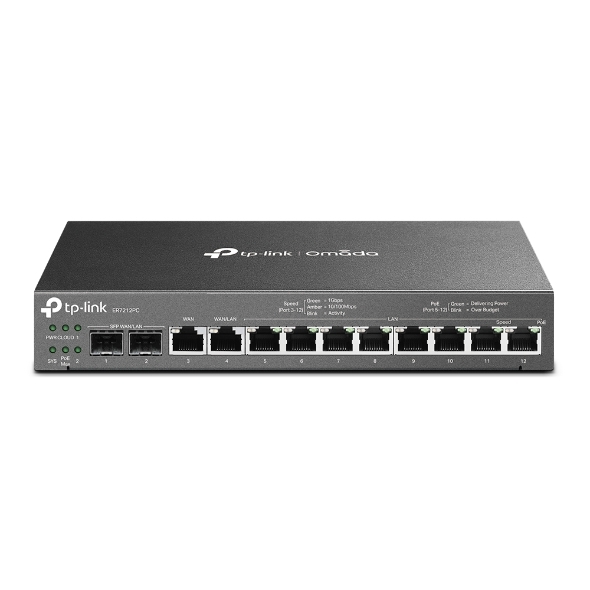

    main product photo

    TP-Link Omada Gigabit VPN Router with PoE+ Ports and Controller Ability, 2 Gigabit SFP WAN/LAN Port, 1 Gigabit RJ45 WAN Port, 1 Gigabit RJ45 WAN/LAN Port ER7212PC

    $272.00
    SKU:399999
    MPN:ER7212PC Link
    Manufacturer:https://www.tp-link.com
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    HARDWARE FEATURES
    Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
    • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
    Interface • 2 Gigabit SFP WAN/LAN ports
    • 1 Gigabit WAN port
    • 1 Gigabit LAN/WAN port
    • 8 Gigabit LAN ports
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
    EIA/TIA-568 100Ω STP (Max 100 m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
    EIA/TIA-568 100Ω STP (Max 100 m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
    Fan Quantity Fanless
    Button Reset Button
    Power Supply 53.5VDC/2.43A Adapter
    PoE Budget 8 ports PoE+ output, 110 W PoE Budget
    Flash 8Mb Nor + 4 GB EMMC
    DRAM 1 GB DDR3
    LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
    Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
    Protection 4 kV surge protection
    Enclosure Steel
    Mounting Desktop/Wall-mount
    Max Power Consumption • 133.2W with PoE Max
    • 13.88W without PoE
    PERFORMANCE
    Concurrent Session 24,980
    New Sessions /Second 1,900
    NAT (Static IP) 935.5 Mbps / 942.1 Mbps
    NAT(DHCP) 940.2 Mbps / 941.7 Mbps
    NAT(PPPoE) 913.1 Mbps / 935.2 Mbps
    NAT (L2TP) 545.0 Mbps / 912.7 Mbps
    NAT (PPTP) 523.0 Mbps / 912.8 Mbps
    IPsec VPN Throughput (AES256) 168.5 Mbps
    IPsec VPN Throughput AES256: 168.5 Mbps
    OpenVPN 34 Mbps
    L2TP VPN Throughput • Unencrypted: 845.3 Mbps
    • Encrypted: 333.2 Mbps
    PPTP VPN Throughput • Unencrypted: 1012.6 Mbps
    • Encrypted: 401.4 Mbps
    66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
    1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps
    BASIC FUNCTIONS
    WAN Connection Type • Static IP
    • Dynamic IP
    • PPPoE
    • PPTP
    • L2TP
    MAC Clone Modify WAN MAC Address
    DHCP • DHCP Server
    • DHCP Address Reservation
    • Multi-IP Interfaces
    • Multi-Net DHCP
    IPv6 support
    VLAN 802.1Q VLAN
    IPTV IGMP v2/v3 Proxy
    ADVANCED FUNCTIONS
    ACL IP/Port/Protocol/Domain Name Filtering
    Advanced Routing • Static Routing
    • Policy Routing
    Bandwidth Control IP/Port-based Bandwidth Control
    Load Balance • Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup
    • Online Detection
    NAT • Multi-Net NAT
    • Virtual Server
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG
    • UPnP
    Session Limit IP-based Session Limit
    VPN
    SSL VPN -
    IPsec VPN • 20 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • AES128, AES192, AES256 Encryption Algorithm
    • IKE v1/v2
    • SHA1, SHA2 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
    PPTP VPN • PPTP VPN Server
    • PPTP VPN Client (10)
    • 16 Tunnels
    • PPTP with MPPE Encryption
    L2TP VPN • L2TP VPN Server
    • L2TP VPN Client (10)
    • 16 Tunnels
    • L2TP over IPSec
    OpenVPN • OpenVPN Server
    • OpenVPN Client (10)§
    • 16 OpenVPN Tunnels
    SECURITY
    Filtering URL Filtering
    ARP Inspection -
    Attack Defense • TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN
    Access Control Source/Destination IP Based Access Control
    AUTHENTICATION
    Web Authentication • No Authentication
    • Simple Password
    • Hotspot (Local User / Voucher / SMS / Radius)
    • External Radius Sever
    • External Portal Sever
    • Facebook
    MANAGEMENT
    Omada App Yes
    Centralized Management Yes.
    Cloud Access Yes
    Service Dynamic DNS (Dyndns, No-IP)
    Maintenance • Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3
    • Syslog Support
    Zero-Touch Provisioning -
    Management Features • Automatic Device Discovery
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • Captive Portal Configuration
    • Management up to 1 Router, 2 Switches and 10 EAPs
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • ER7212PC
    • Power Adapter
    • Power Cord
    • Quick Installation Guide
    System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
    • MAC OS, NetWare, UNIX or Linux
    Environment • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
    • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    • Operating Humidity: 10% to 90% non-condensing
    • Storage Humidity: 5% to 90% non-condensing
