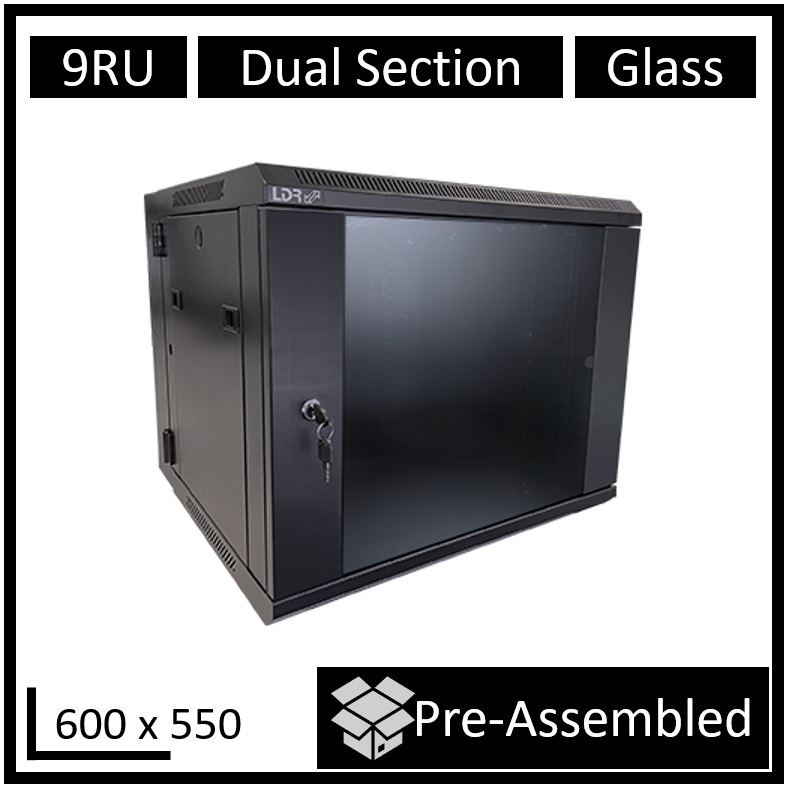

DESCRIPTION

The LDR two-section hanging cabinets are most often used in close circuit television, security alarm, and access control system installations, where quick and easy access to the back section of the cabinet is an important factor. Thanks to this, access to the back side of the mounted devices does not pose any difficulties.

FEATURES

Side doors mounted on latches with a lock assembly option
A frame with a load capacity of 60kg
Protection class IP20
Front door - glass

SPECIFICATIONS

Nominal height 9U
Total outer height 500mm
Outer width 600mm
Outer depth 550mm
Mounting depth 400mm
Colour Black
Maximum load capacity 60kg
Protection class IP20
Front doors Glass with a lock
Back doors n/a
Side panels Full steel dismounted on latches with a lock assembly option
Packaging Dimensions 1x Carton, 635mm x 535mm x 210mm
