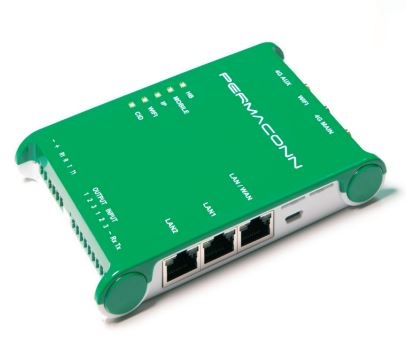

    PERMACONN S117280 PM54 DUAL SIM 4G & IP COMM 2YR

    $221.00
    SKU:407701
    MPN:S117280 Link
    Manufacturer:https://permaconn.com
    Brand: PERMACONN
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    Industry First: Alarm, router and hotspot features work simultaneously and can easily be powered from the alarm panel
    Secure, High Speed 4G: Connect any internet-ready device and view high definition CCTV in real-time
    Enhanced Connectivity: Extend your clients’ networks and provide a 4G fall-back if their primary IP connection fails
    Easy to Use: Plug and play install with remote configuration over 4G/IP using Atlas
    Upload / Download: Remote alarm panel programming (Inc. Bosch 2000 / 3000)

    4G LTE-FDD:

    Frequency: B1(2100) B3(1800) B5(850) B8(900) B28(700)
    Bandwidth: Max 10Mbps (DL) Max 5Mbps (UL)

    3G HSPD+:

    Frequency: B1(2100) B5(850) B8(900)
    Bandwidth: Max 21Mbps (DL) Max 5.76Mbps (UL)

    Antenna:
    2 antennas for Cellular (MIMO) + 1 for Wi-Fi
    WIFI Capability:

    Supports: IEEE 802.11b/g/n
    Frequency: 2.4GHz

    Ethernet Specs:

    Ports: 3 x RJ-45 port
    Physical layer: 10/100Base-T
    Data rate: 10/100 Mbps
    Interface: Auto MDI/MDIX

    Routing/Failover:
    IP pass-through; NAT, NAPT with IP Port Forwarding; Ethernet Bridging; DHCP; DNS Client and Server
    Failover:
    Automatic failover/failback to second cellular SIM, Wi-Fi or Ethernet.
    IP/Wi-Fi to SIM A and finally SIM B.
    Management:
    Remote configuration via Atlas web portal
    Data Modem:
    2400 baud modem for alarm panel remote upload / download
    Serial Port:
    High Speed RS232 interface for serial connection to alarm and access control panels
    Auxiliary Input:
    3 x 24Hr inputs state change detected every second EOL 3.3K
    Dimensions:
    3 x Open Collector outputs @ 50mA (max).
    Function control using Atlas web portal and/or Pocket Secure app
    Auxiliary Output:
    110mm (h) x 25mm (d) x 80mm (w)

    Weight:

    180 g

    Power:
    10 to 15V DC
    Consumption:
    Idle 0.12A @13.8V DC
    Transmitting:
    0.35A @13.8V DC
