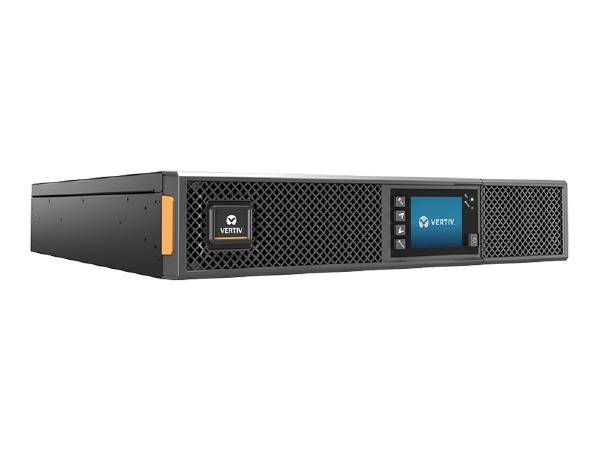

Vertiv Liebert GXT5 1500IRT2UXL, 1500VA 1500W 230V, Double Conversion UPS, 1.0 PF, 2U Tower, Rack-Mountable, 8x IEC 60320 C13, Single Phase 1202009
$2,321.00
| SKU: | 413267 |
|---|---|
| MPN: | 01202009 |
| Manufacturer: | https://www.vertiv.com/en-asia/ |
| Brand: | Vertiv |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Liebert GXT5 (GXT5-1500IRT2UXL) is a 1500VA/1500W 230V online double conversion UPS in a 2U tower/rack mount design with unity power factor (1.0) and offers efficiency up to 93% at full load. This UPS is ENERGY STAR 2.0 certified with higher efficiency and is equipped with total of 8 output receptacles, 6 of those are individual programmable output receptacles, as well as LCD multi-language color display and gravity sensing.
- Top-level on-line double conversion UPS for mission-critical application
- Unity output power factor
- LCD multi-language color display (gravity sensing)
- On-line (VFI) mode efficiency up to 95.9% at full load
- Active ECO mode efficiency up to 99%
- Energy Star 2.0 certified
- Controllable and programmable output sockets
- Integrated solution with batteries and electronics
- External battery cabinets auto-detection
- Operates at full power up to 40°C (up to 50°C with derating)
- Intelligent Communication ready
- Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
Specifications
▼
Technical Details
| Model Number | GXT5-1500IRT2UXL |
|---|---|
| Capacity VA | 1500W/1500VA |
| Topology | Double Conversion Online |
| Sine Wave | Pure Sinewave |
| Form Factor | Rack / Tower |
| Active Cooling | Yes |
| SNMP Compatible | Yes |
| Hard-Line | No |
| Hot Swappable Batteries | Yes |
| Australian Outlets - Surge Protection | Single Phase |
| Expandable Batteries | Yes |
| IEC 13 Count | 8 |
| Australian Outlets - UPS | 0 |
| IEC 19 Count | 0 |
| Voltage Range | 200-240Vac |
| Voltage | 230Vac |
| Frequency Range | 40/70Hz (Auto sensing) |
| Output Voltage | 200-240Vac |
| Battery Type | 12V 9AH (x4) |
| Phase Count | Single Phase |
| Surge Protection | NA |
| Interface | USB and RS232 as standard |
| Software | Vertiv Power |
| LCD Alarm | AC Mode, Battery Mode, Low Battery, Fault, Overload |
| Audible Alarm | Batt. Mode, low battery, overload, fault, etc. |
| Operating Temperature Range | 0-50 C |
| Noise Level | Less than 46dB @ 1metre |
| Dimensions | 470mm x 430mm x 85mm |
| Weight | 21kg |
| Warranty | 3 Years |
| Warranty | 3 Years |
Vendor Info
▼
Liebert GXT5 (GXT5-1500IRT2UXL) is a 1500VA/1500W 230V online double conversion UPS in a 2U tower/rack mount design with unity power factor (1.0) and offers efficiency up to 93% at full load. This UPS is ENERGY STAR 2.0 certified with higher efficiency and is equipped with total of 8 output receptacles, 6 of those are individual programmable output receptacles, as well as LCD multi-language color display and gravity sensing.
