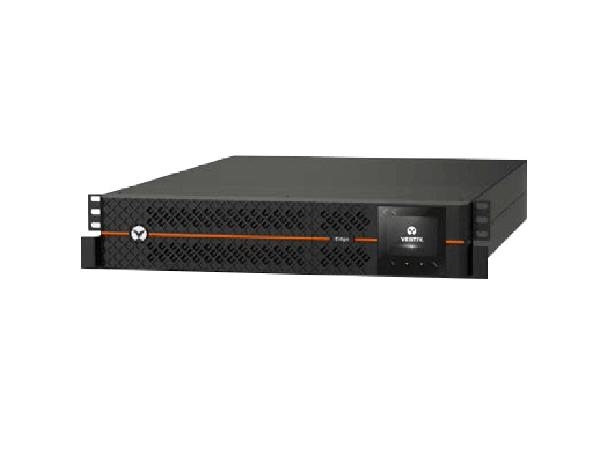

Vertiv Edge UPS 3000IRT2UXL, 3000VA 2700W 230V Line Interactive UPS, 2U Tower, Rack-Mountable, 6x IEC 60320 C13, 1x IEC 60320 C19, Single Phase 1202573

$2,199.00
SKU:413265
MPN:01202573
Manufacturer:https://www.vertiv.com/en-asia/
Brand: Vertiv
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

Vertiv Edge UPS (EDGE-3000IRT2UXL) UPS is a 3000VA / 2700W / 230V line interactive UPS in a 2U tower/rack mount form factor with high 0.9 PF. This variant is equipped with a rotatable LCD monitor, advanced AVR for a more stable output voltage regulation and 6 total outlets with 3 programmable ones that can prioritize critical loads. Has a feature to add communication card to manage devices remotely.

  • High output PF=0.9 to maximize available power and protect more equipment
  • High efficiency, up to 98% in line mode, to deliver energy savings
  • 1U, 2U, 3U, tower, rack/tower form factors, with power ratings from 500VA to 3000VA, to address a broad range of power requirements
  • Advanced AVR protection with 2x boost and 1x buck tap to protect the battery by smoothing out spikes, sags and brownouts
  • Color graphic LCD display
  • Add up to 6 extended run battery cabinets to increase runtime
  • External battery cabinets with auto-detection
  • Rack/tower 3kVA model with short depth for flexible installation
  • "Green mode" operation: in battery mode with small loads, the UPS will automatically shut down to protect batteries, optimize energy savings
  • Programmable outlets to disable non-critical loads, optimize battery runtime
  • Input breaker device for additional protection to the load in worst case failures
  • Smart fan speed control for lower audible noise
  • Remote connectivity via network interface or serial connection to monitor power consumption and configure user-defined alert notifications to prevent downtime
  • Extend battery life with deep discharge protection
  • RoHS and REACH compliant

Technical Details

Model NumberEDGE-3000IRT2UXL
Capacity VA2700W/3000VA
TopologyLine-interactive
Sine WavePure Sinewave
Form FactorRack / Tower
Active CoolingNo
SNMP CompatibleYes
Hard-LineNo
Hot Swappable BatteriesYes
Australian Outlets - Surge ProtectionSingle Phase
Expandable BatteriesYes
IEC 13 Count6
Australian Outlets - UPS0
IEC 19 Count0
Voltage Range166-278Vac
Voltage230Vac
Frequency Range45/65Hz (Auto sensing)
Output Voltage200-240Vac
Battery TypeValve-regulated, Non-spillable, Lead acid
Phase CountSingle Phase
Surge Protection624 Joules
InterfaceUSB interface
SoftwareVertiv Power
LCD AlarmAC Mode, Battery Mode, Low Battery, Fault, Overload
Audible AlarmBatt. Mode, low battery, overload, fault, etc.
Operating Temperature Range0-40 C
Noise LevelLess than 45dB AVR mode
Dimensions438mm x 630mm x 86mm
Weight34kg
Warranty3 Years
Warranty3 Years
Vertiv Edge UPS (EDGE-3000IRT2UXL) UPS is a 3000VA / 2700W / 230V line interactive UPS in a 2U tower/rack mount form factor with high 0.9 PF. This variant is equipped with a rotatable LCD monitor, advanced AVR for a more stable output voltage regulation and 6 total outlets with 3 programmable ones that can prioritize critical loads. Has a feature to add communication card to manage devices remotely.
