Startech 4 Port Gigabit Poe Pcie Network Card (St4000Pexpse)
SKU: | 293705 |
---|---|
MPN: | ST4000PEXPSE Link |
Manufacturer: | https://www.startech.com/\ |
Brand: | Startech |
Warranty: | Standard Manufacturer's Warranty |
Availability: | Preorder 2-3 weeks |
Fright Estimate |
Description

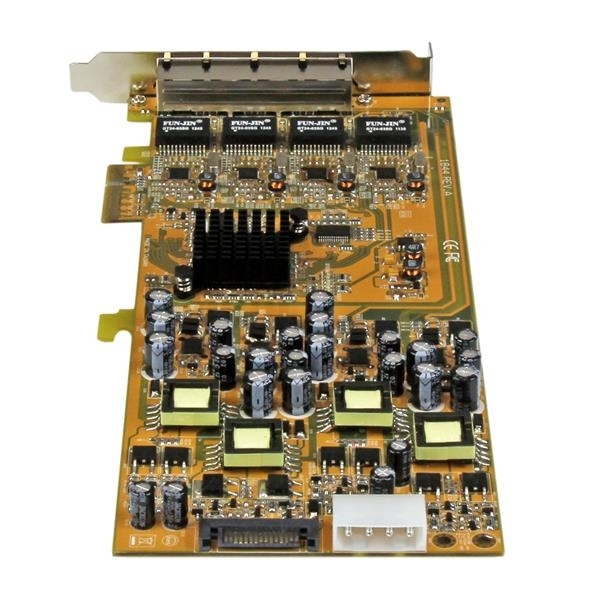

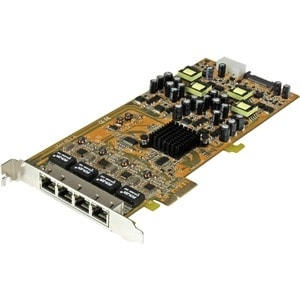

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
General Information | |
---|---|
Product Type: | Gigabit Ethernet Card |
Manufacturer Part Number: | ST4000PEXPSE |
Manufacturer Website Address: | http://www.startech.com/au |
Packaged Quantity: | 1 |
Manufacturer: | StarTech.com |
Product Name: | 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC |
Brand Name: | StarTech.com |
Interfaces/Ports | |
---|---|
Host Interface: | PCI Express x4 |
Number of Network (RJ-45) Ports: | 4 |
Total Number of Ports: | 4 |
Media & Performance | |
---|---|
Media Type Supported: | Twisted Pair |
Miscellaneous | |
---|---|
Device Supported: | Computer |
Environmentally Friendly: | Yes |
Network & Communication | |
---|---|
Network Technology: | 10/100/1000Base-T |
Physical Characteristics | |
---|---|
Thickness: | 17.8 mm |
Form Factor: | Plug-in Card |
Height: | 119.4 mm |
Width: | 238.8 mm |
