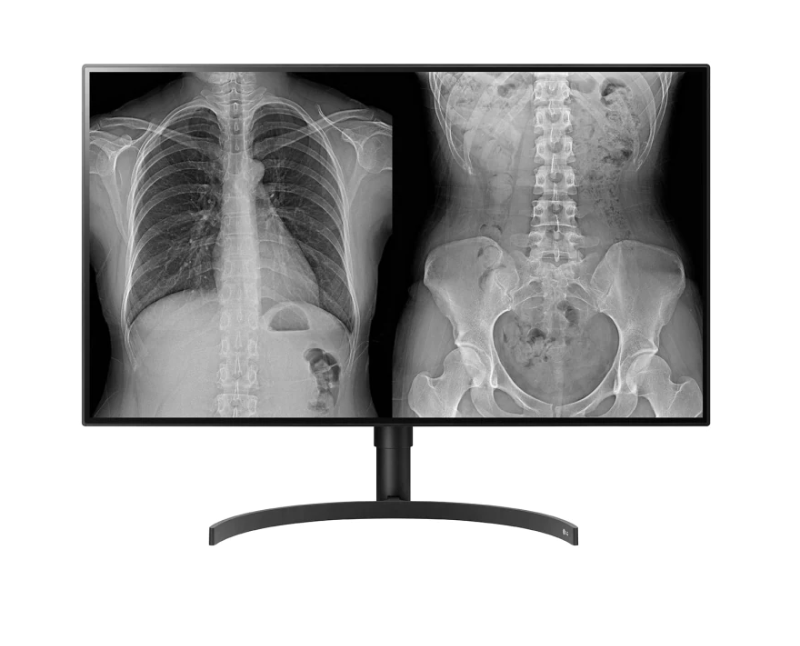

LG 32" (16:9) 8MP IPS DIAGNOSTIC, 450CD, HDMI, DP, DICOM, CLINICAL PATHOLOGY, 5YR WTY
$11,642,398.00
| SKU: | 380215 |
|---|---|
| MPN: | 32HL512D-B Link |
| Manufacturer: | https://www.lg.com |
| Brand: | Lg |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
LG 32" (16:9) 8MP IPS DIAGNOSTIC, 450CD, HDMI, DP, DICOM, CLINICAL PATHOLOGY, 5YR WTY
Display31.5"" 8MP IPS
Multi-resolution Mode (8/ 6/ 4MP)
ConveniencePathology Mode
PBP & Dual Controller
ErgonomicsTilt, Height
2-way Pivot
Optimized Image Quality for
Diagnostic Review
31.5" 8MP IPS Display
Accurate Image from Any Angle
The 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
Large Screen31.5-inch
Resolution8MP
IPSWide Viewing Angle
Multi-resolution Mode (8/ 6/ 4MP)
Compatible with Every Device
The connection to the various types of devices is essential for the diagnostic monitor. Thanks to 32HL512D’s multi resolution mode, you can adjust the resolution of monitor to optimize to the connected device.
Pathology Mode
True-to-Life Color Reproduction
In Pathology Mode, the 32HL512D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
-
Conventional
-
Brightness Stabilization
Brightness Stabilization
A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.
To Increase Efficiency &
Convenience
PBP & Dual Controller
Multiple Signals on One Screen
PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.
Ergonomics Design
Designed for Comfort & Immersion
Its ergonomic stand and 4-side virtually borderless design can realize an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
PivotTwo-way
Height0~110mm
Tilt-5~20°
Design4-side virtually borderless design
Specifications
▼
DISPLAY
-
- Aspect Ratio
- 16:9
- Brightness (Typ.)
- 450
-
- Brightness (DICOM Cal.)
- 250 / 350
- Color Gamut (Typ.)
- DCI-P3 98% (CIE1976)
-
- Contrast Ratio (Typ.)
- 1300:1
- Panel Type
- IPS
-
- Peak Brightness (Typ.)
- 450
- Pixel Pitch
- 0.18159(H)x0.18159(V) mm
-
- Resolution
- 3840 x 2160
- Response Time (GTG)
- 14ms (Off), 5ms(Faster)
-
- Size (Inch)
- 31.5
- Size (cm)
- 80.0051
-
- Surface Treatment
- Anti-Glare
- Viewing Angle (CR≥10)
- 178(R/L), 178(U/D)
FEATURE
-
- Auto Luminance sensor
- YES
- Black Stabilizer
- YES
-
- Factory Calibration
- YES(Delta E<5, Gamma 1.8~2.6/DICOM curve)
- DICOM
- Yes(<=10%)
-
- Color Temperature
- 6500K / 8500K / 9300K Manual (5000K ~ 10000K)
- Flicker safe
- YES
-
- HDR 10
- YES
- HDR Effect
- YES
-
- HW Calibration
- YES(PerfectLum)
- OSD Language
- 17 Language
-
- PBP
- Yes (2PBP)
- Pathology
- YES
-
- Picture Mode
- (SDR )Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM(Clinical), DICOM(Diagnostic), Calibration 1, Calibration 2, (HDR )Custom, Vivid, Standard
- Reader Mode
- YES
-
- Smart Energy Saving
- YES
- Super Resolution+
- YES
-
- Uniformity
- YES
SW APPLICATION
-
- Dual Controller
- YES
- OnScreen Control (LG Screen Manager)
- YES
-
- Qubyx
- YES
CONNECTIVITY
-
- DP Version
- 1.4
- DisplayPort
- YES(2ea)
-
- HDMI
- YES(1ea)
- HDMI Version
- 2.0
-
- USB Downstream Port
- Yes(2ea/ver2.0)
- USB Upstream Port
- Yes(1ea/ver2.0)
POWER
-
- AC Input
- 100-240Vac, 50/60Hz
- DC Output
- 19V, 3.42A
-
- Power Consumption (DC Off)
- Less than 0.3W
- Power Consumption (Max.)
- 65W
-
- Power Consumption (Sleep Mode)
- Less than 1.2W
- Type
- External Power(Adapter)
MECHANICAL
-
- Display Position Adjustments
- Tilt/Height/Pivot
- Down Height
- 85.3
-
- Height Range
- 0~110mm
- Pivot
- Bi-Direction
-
- Tilt
- YES
- Wall Mountable
- 100 x 100 mm
DIMENSIONS/WEIGHT
-
- Dimension in Shiping (W x H x D)
- 822 X 537 X 215 mm
- Dimension with Stand (W x H x D)
- 718.2 X 598.0 X 231.2 mm (Up), 718.2 X 488.0 X 231.2 mm (Down)
-
- Dimension without Stand (W x H x D)
- 718.2 X 414.3 X 45.1 mm
- Pallet Stuffing (20ft/40ft/40ft HC)
- TBD
-
- Weight in Shipping
- TBD
- Weight with Stand
- 7.3 kg
-
- Weight without Stand
- 5.9 kg
ACCESSORY
-
- Adapter
- YES
- Calibration Report (Paper)
- YES
-
- Display Port
- YES
- HDMI
- YES
-
- Power Cord
- YES
