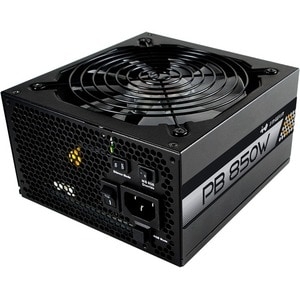

    main product photo

    In Win Premium Basic Series 850W Fully Modular 80+ Gold Certified Rgb Fan Psu 5 Years Warranty

    PB-850W
    $210.00
    SKU:272882
    MPN:PB-850W Link
    Manufacturer:https://www.in-win.com/en/
    Brand: In Win
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    CUSTOMIZE WITHOUT COMPROMISE

    The all new PB Series is an 80 PLUS® Gold certified gaming power supply. Gamers can adjust the colors of the built-in RGB LED fan to match personal preferences. Produce a light show in your gaming rig!

    Behold, RGB Unleashed!










    Sync Lighting Effects

    The PB Series is compatible with RGB-supported motherboards(4pin, 12V). Simply activate the motherboard software and the power supply’s RGB LEDs will perfectly complement your gaming rig.



    RGB Mode

    Gamers can also turn off the M/B RGB override button to manually switch the colors or activate the breathing effect. This mode provides eight options: Red, green, dark blue, yellow, purple, light blue, white and breathing effect. Completely match the theme of your rig!

    The power supply also features a built-in memory function to save the applied color, insuring the same selected color appears every time you boot your PC.



    Hibernation Mode; Balancing Noise and Thermal Levels

    The fluid dynamic bearing (FDB) 135mm fan will switch to hibernation mode automatically once the system’s load is lower than 20%. This will maintain the power supply’s stability and noise levels. The fan will begin to rotate when the system’s load is over 20% at a silent 18dBA output.

    Think Sync!

    The PB Series is capable of synchronizing with other RGB sync-ready components by using the 4-pin RGB headers (such as RGB fan and LED strip). Create your own synchronized lighting show!



    80 PLUS® Gold Certified Fully-Modular Power Supply

    The PB Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.

    5V and 3.3V DC to DC Design

    The DC to DC converter design provides superior dynamic response and supports a foundation for greater system stability.

    Highly Reliable Japanese Aluminium Electrolytic Capacitors

    Premium Japanese capacitors with 105°C rating improve power stability at higher temperatures and provides an ultra-long lifespan.

    Fully Modular Cables for Quick and Easy Installation

    The fully modular and low-profile cable design lets gamers quickly and easily install for tidier cable management.

    Specifications

    Model PB-650W PB-750W PB-850W
    Part Number IW-PB650-RGB IW-PB750-RGB IW-PB850-RGB
    Total Power 650W 750W 850W
    Material SECC
    Type ATX12V V2.4 / EPS12V V2.92
    Cable Management Fully Modular
    PFC Active PFC ( >0.9)
    Efficiency 80 PLUS Gold (Up to 90%)
    MTBF (Hours) >100,000 hrs.
    AC Input 100 - 240Vac. 50-60Hz
    Fan 135mm FDB Fan
    (RGB Lighting)
    Typical Load Fan Noise(dBA)
    (50% Loading)    		 <25dBA
    Operating Temperature Range (°C) 0~40 °C
    Full Protection OCP / OVP / UVP / SCP / OTP / OPP
    Safety Certifications cTUVus / TUV / CB / BSMI / CE / FCC / EAC / CCC / RCM
    Dimensions (L x W x H) 160 x 150 x 86mm
    Package Dimensions
    (L x W x H)    		 210 x 325 x 100mm
    Net Weight 2.35 kg 2.46 kg 2.64 kg
    Gross Weight 2.81 kg 2.92 kg 3.12 kg
    Warranty 5 Years
    Connector 20+4 Pin Motherboard 1 1 1
    8 (4+4) Pin CPU 1 2 2
    8 (6+2) Pin PCI-E 4 4 6
    4 Pin Peripheral 4 4 4
    SATA (90 Degree) 9 12 12
    Floppy 1 1 1
    RGB LED Connector Modular Cable Lighting 1 1 1
    RGB LED Controller 1 1 1
    * InWin products comply with RoHS regulations
    * Specifications may vary based on different regions
