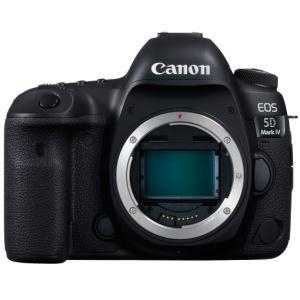

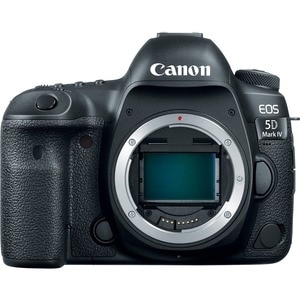

CANON 5DIVB EOS 5D MARK IV BODY ONLY 5DIVB
| SKU: | 231504 |
|---|---|
| MPN: | 5DIVB Link |
| Manufacturer: | https://shop.usa.canon.com/ |
| Brand: | Canon |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
30.4 Megapixel Full-frame CMOS Sensor
The EOS 5D Mark IV camera boasts a full-frame, high-speed CMOS sensor that’s ideal for a broad range of applications with its remarkable high-resolution abilities. Measuring approximately 36.0mm x 24.0mm, the same size and ratio as a 35mm film frame, it records 30.4 effective Megapixels at normal ISOs of up to 32000. It also captures incredible still and 4K video clips suitable for significant post-processing, retouching and cropping. Versatile in virtually all kinds of light and any shooting situation from print and wedding to full-bleed magazine spreads and other commercial or fine art use, the EOS 5D Mark IV consistently produces high-resolution 4K video and image files that are easily compatible with any number of diverse workflows.
ISO 100–32000 (expandable to 50–102400)
Featuring an ISO range of 100–32000 (expandable to 50–102400), the EOS 5D Mark IV camera is incredibly well-suited for low-light photography. Its sensor has an improved S/N ratio plus an improved noise-processing algorithm to help deliver high-level light sensitivity along with its high resolution, with virtually no compromise in image quality. Whether working in a dimly lit auditorium, trying to capture the action at night, photographing at the fastest possible shutter speed or simply suppressing camera shake blur, the EOS 5D Mark IV has an extended ISO range that contributes to its ability to excel in nearly every situation it faces.
4K Motion JPEG video (DCI cinema-type 4096 x 2160) at 30p or 24p; in-camera still frame grab* of 4K 8.8-Megapixel images; multiple video options include Full HD up to 60p, and HD up to 120p.
The EOS 5D Mark IV is a remarkably capable video camera. Thanks to its impressive CMOS sensor and its high-speed DIGIC 6+ Image Processor, it can transition from taking still photographs to shooting videos in a near instant, capturing Digital Cinema (DCI) standard 4K (Motion JPEG) videos of 4096 x 2160 pixels at up to 30 or 24 fps*. Adding to its versatility, it also supports the 4K broadcasting standard of 3840 x 2160 pixels with slight trimming on the left and right sides. Featuring advanced Live View operation and brilliantly responsive Dual Pixel CMOS AF, the EOS 5D Mark IV has a touch panel display with focus points that can easily be selected during operation, and quickly confirmed by selecting and saving an 8.8-Megapixel image with in-camera 4K still frame grab**. Along with capturing beautiful 4K videos, the EOS 5D Mark IV is equally able to shoot Full HD video at up to 60p plus HD at frame rates as high as 120p, ideal for smooth slow-motion video. It also supports both MOV and MP4 formats for a variety of applications right out of the camera.
Watch this series of clips shot at 120p HD settings in horizontal framing shot wit the EOS 5D Mark IV.
Watch this series of clips shot at 120p HD settings in vertical framing with the EOS 5D Mark IV.
* 4K requires the following write speed requirements: CF UDMA7 (100MB/sec. or faster); SD UHS-I (90MB/sec. or higher)
** Saving a still image from a single movie frame may not result in the same image quality as a normal still image.
Proper operation cannot be guaranteed for all recording media.
Card compatibility based on Canon’s testing standards as of August 2016.
We recommend users format the memory card in camera and conduct a test prior to actually shooting 4K video.
Superb Dual Pixel CMOS AF for responsive and smooth AF during video or Live View shooting; LCD monitor has full touch-screen interface, including selection of AF area.
Dual Pixel CMOS AF
Adding to its powerful and portable design, the EOS 5D Mark IV camera utilizes Canon’s smooth, fast and intelligent Dual Pixel CMOS AF. Featuring two photodiodes per pixel and each pixel capable of phase-difference detection autofocus, the CMOS sensor can deliver fast and accurate AF throughout approximately 80% of the image plane. Able to detect shifts in movement at the pixel level, Dual Pixel CMOS AF enables continuous automatic AF and AF tracking that enhances overall camera operation for sharp still images and smooth, accurate focus transitions in movies. Working with the EOS 5D Mark IV’s 3.2" touch panel LCD screen, Dual Pixel CMOS AF lets photographers select focus points throughout the frame with the touch of a finger, and confirm focus by zooming in on the image or enlarging stills grabbed from video recordings.
3.2" Touch Panel LCD
The EOS 5D Mark IV camera features a 1.62 million dot, low-reflection 3.2-inch Clear View LCD II monitor for bright, sharp display in a wide variety of shooting situations. The LCD’s touch panel surface facilitates fast, intuitive operation, including AF frame switching, menu and setting changes plus image magnification during Live View shooting and movie shooting. Still photographs can also be captured quickly with the touch panel’s shutter release function. A customizable Quick Control screen adds flexibility and convenience for specific users’ preferences. Image review and playback are also enhanced with the EOS 5D Mark IV camera’s Clear View LCD II Monitor. Not only does the EOS 5D Mark IV’s LCD provide a high-precision image for composition and playback, but it also remains visible even when the photographer is wearing polarized sunglasses! In numerous situations in the studio and in the field, the EOS 5D Mark IV’s LCD panel is an ideal complement to its amazing TTL viewfinder.
Excellent performance — up to 7.0 fps** continuous shooting speed with high-performance DIGIC 6+ Image Processor for improved speed and excellent image quality.
Excellent performance up to 7.0 fps** continuous shooting speed with high-performance DIGIC 6+ Image Processor for improved speed and excellent image quality.
Up to 7.0 fps** Continuous Shooting
The EOS 5D Mark IV camera is designed to keep up with the action. Its remarkable shutter, advanced AF and exposure and image processing systems help ensure virtually instantaneous response and performance at up to 7.0 fps**, even at full resolution. Whether searching for a joyous expression on a bride’s face or capturing an athlete in action, the EOS 5D Mark IV doesn’t let file size compromise the speed of capture even when bracketing exposures of a complex lighting situation, helping photographers and moviemakers attain consistently high performance in many situations.
** Continuous shooting speed may vary depending on the shutter speed, the aperture, the lens being used, the battery charge and various camera settings.
DIGIC 6+ Image Processor
The powerful DIGIC 6+ Image Processor increases the EOS 5D Mark IV camera’s in-camera capabilities, enabling fast operation across the board and helping to ensure that high-quality still image and 4K video recording is achieved no matter the shooting environment. It has a noise-processing algorithm that helps reduce noise at high ISO settings, and features a Digital Lens Optimizer that can automatically apply a variety of aberration and diffraction corrections as well as other corrective measures specific to the lens in use. The EOS 5D Mark IV’s power to perform numerous operations with ease is made possible in large part thanks to the amazing DIGIC 6+ Image Processor.
61 AF points with expanded vertical coverage with 41 cross-points, and AF possible at all 61 AF points with many lens + extender combinations effective at f/8.
To complement its stellar CMOS sensor and powerful processing abilities, the EOS 5D Mark IV camera incorporates a 61-point High Density Reticular AF II system. It features up to 41 cross-type points and an extensive AF area that extends well into the top and bottom of the peripheral frame. It also has a wide subject tracking area that enhances the AF system with consistent focus tracking to capture the action at hand and includes Canon’s AI Servo AF III, which remembers the AF path and helps refine precision shot-to-shot. Low-light performance is phenomenal – the AF system’s low-intensity limit is EV -3 at the center AF point and all 61 AF points are compatible down to f/8 for excellent low-light performance, even with lens extenders attached. To help ensure that AF points and other shooting information are visible at a glance, the EOS 5D Mark IV also features Canon’s Intelligent Viewfinder II for a bright, customizable view. Whether choosing individual AF points manually or using one of the camera’s automatic AF selection modes, the EOS 5D Mark IV’s AF system is a significant part of its overall excellence.
150,000-pixel RGB+IR metering sensor helps provide precise exposure metering, helps detect flickering lights and allows for enhanced scene recognition and face detection capabilities.
To help deliver nearly fool-proof performance, the EOS 5D Mark IV camera employs a powerful and instant subject and light analysis system. The iSA Intelligent Scene Analysis system uses its own RGB+IR light sensor with an approximately 150,000-pixel resolution to provide the camera with immense image analysis in an instant, making necessary corrections along the way. The sensor enables Canon’s anti-flicker function, which detects the frequency and phase of a light source’s flicker (such as a fluorescent light) and captures images near the point of peak brightness when the subject is most likely to be well-illuminated. The EOS 5D Mark IV also incorporates Canon’s Intelligent Tracking and Recognition system (iTR AF) that detects and tracks subjects, automatically switching the AF point to optimize tracking. Using tracking algorithms tailored to recognize faces and colors, this system not only helps to quickly and automatically select the ideal capture settings, but also serves as a brilliant foundation to the EOS 5D Mark IV’s AF system.
Dual Pixel RAW***, in-camera Digital Lens Optimizer during JPEG shooting and Diffraction Correction technologies.
The EOS 5D Mark IV camera is equipped with a number of advanced features designed to combat image degradation from lens aberration, focus and other characteristics that can adversely affect the quality of the final image. The EOS 5D Mark IV’s Dual Pixel CMOS AF system enables capture of Dual Pixel Raw (DPRAW) files***. Images shot as DPRAWs have additional adjustment possibilities when processed with Canon’s Digital Photo Professional image processing software, which enables pixel-level adjustment and refinement for still photographs and includes Image Micro-adjustment to help maximize sharpness in detail areas, Bokeh Shift for more pleasing soft focus areas and Ghosting Reduction to help reduce aberrations and flare. The EOS 5D Mark IV camera is also equipped with a number of in-camera optical correction functions previously available only using Digital Photo Professional. It comes preloaded with aberration data particular to specific lenses, helping to eliminate the need to register lens data on previously released lenses and correcting images with virtually no delay in-camera. The EOS 5D Mark IV not only fixes peripheral brightness and chromatic aberration, but also features distortion correction and diffraction correction. Distortion correction helps resolve barrel and pincushion distortions, while diffraction correction helps to eliminate the blurring effects from diffraction that can be created when capturing an image at a small aperture. The EOS 5D Mark IV’s in-camera Digital Lens Optimizer works with the camera’s DIGIC 6+ Image Processor to help ensure these corrections can be made with virtually no effect on operational speed, even when shooting numerous successions of JPEG images, speeding up the photographer’s workflow and delivering gorgeous images right from the camera.
*** When lens diaphragm setting is fully open, adjustment volume and compensation effect are emphasized. Sufficient adjustment volume and compensation effect may not be achieved, depending on lens in use and shooting conditions. Adjustment volume and compensation effect vary depending on camera position (landscape or portrait).
Built-in Wi-Fi®^ and NFC^^ connectivity provide easy sharing to compatible smart devices, select social media sites and the Canon Connect Station CS100 device.
Built-in Wi-Fi® Technology
For a useful and quick workflow in a variety of locations, the EOS 5D Mark IV camera’s built-in Wi-Fi®^ feature can help streamline camera operations across the board. Using the free Canon Camera Connect app^ on a compatible iOS® or Android™ device, the EOS 5D Mark IV can easily be set up to shoot remotely from a distance, even in Live View mode, with complete control of settings such as aperture, shutter speed, ISO, focus and shutter release. Image review and transfer are similarly fast and easy without ever having to take the camera out of its bag. Full DLNA (Digital Living Network Alliance) compatibility means easy sharing between the EOS 5D Mark IV and other DLNA products, such as HDTVs and compatible smartphones. Still images can even be transferred between two wireless-enabled Canon cameras over a Local Area Network (LAN). Images and video can also be uploaded instantly to CANON iMAGE GATEWAY# for easy sharing on social networking sites, and photos can even be printed on a wireless PictBridge-certified printer without the need for a PC. For more robust Wi-Fi® connections, the EOS 5D Mark IV is also compatible with Canon’s optional Wireless File Transmitter WFT-E7, which supports 2.4GHz/5GHz frequency bands, multiple camera sync and can extend the EOS 5D Mark IV’s operating range up to 10 times that of the camera’s built-in Wi-Fi®.
^ Compatible with iOS® versions 8.0/8.1/8.2/8.3/8.4/9.0/9.1/9.2/9.3, Android™smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
# One-time registration is required on CANON iMAGE GATEWAY online photo album.
Built-in NFC Technology
Built-in NFC (Near Field Communication) technology helps provide the EOS 5D Mark IV camera with a virtually seamless connection to compatible Android™ devices^^. Simply tap to connect and transfer images and videos. It’s also compatible with the Canon Connect Station CS100 device, which makes it simple for photographers and moviemakers to view and organize all their photos and videos from one connected device.
Certain images and effects simulated.
^^ Compatible with Android™ smartphone and tablet versions 4.0/4.1/4.2/4.3/4.4/5.0/5.1/6.0.
Built-in GPS^^^ provides geotag information including auto time syncing with Universal Time Code (UTC) via satellites.
For news photographers capturing hundreds or even thousands of images while moving around throughout the day, landscape photographers on location and even photographers on vacation, GPS has become an indispensable part of a daily workflow. The EOS 5D Mark IV camera’s built-in GPS helps photographers and filmmakers both tag their images with critical location data, and also adjust the time and timestamp on the camera automatically. Featuring both built-in GPS^^^ and Wi-Fi®^ technology, the EOS 5D Mark IV can use GPS and WFT (Wireless File Transfer) together, making it easy to upload numerous images and movies both quickly and from increasingly distant locales. Compatible with American GPS satellites, Russian GLONASS satellites and Japanese quasi-zenith satellites Michibiki, the EOS 5D Mark IV’s GPS information stays reliably accurate in many locations.
Specifications
Type
Digital, AF/AE single-lens reflex, camera
Recording Media
CF card
Type I drive (Type II and Microdrive non-supported.)
UDMA Mode 7 supported.
CFast cards cannot be used.
SD, SDHC and SDXC memory cards
UHS-I supported.
MultiMediaCards (MMC) cannot be used (results in error).
UHS-II not supported. If a UHS-II card is used, it may be slower than a UHS-I (depends on the card specifications).
Compatible Lenses
Canon EF Lenses (excluding EF-S and EF-M lenses)
Lens Mount
Canon EF Mount
Image Sensor
Type
CMOS sensor (Compatible with Dual Pixel CMOS AF)
Pixels
Approx. 30.4 megapixels
Pixel Unit
Approx. 5.36 µm square
Total Pixels
Approx. 31.7 megapixels
Aspect Ratio
3:2 (Horizontal: Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning can be done automatically when the power is turned on/ off.
After the cleaning is performed, the camera will automatically restart (Power OFF to ON).
When you use Multi Shot Noise Reduction, Clean now cannot be selected.
Dust Delete Data acquisition and appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the EOS software DPP to automatically erase the dust spots.
Manual cleaning
Recording System
Recording Format
Complies with Design rule for Camera File System 2.0 and EXIF 2.3
Image Format
Still Image: JPEG, RAW (14 bit Canon Original)
Video: MOV (4K video: Motion JPEG; Full HD and HD Movie: MPEG4 AVC/H.264*; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC)
* Variable (averaged) bit rate.
File Size
3:2 Aspect Ratio
Large/RAW: Approx. 30.1 Megapixels (6720 x 4480)
mRAW: Approx. 16.9 Megapixels (5040 x 3360)
Medium: Approx. 13.3 Megapixels (4464 x 2976)
Small 1/sRAW: Approx. 7.5 Megapixels (3360 x 2240)
Small 2: Approx. 2.5 Megapixels (1920 x 1280)
Small 3: Approx. 0.35 Megapixels (720 x 480)
4:3 Aspect Ratio
Large/RAW: Approx. 26.7 Megapixels (5952 x 4480)*
mRAW: Approx. 15.1 Megapixels (4480 x 3360)
Medium: Approx. 11.8 Megapixels (3968 x 2976)
Small 1/sRAW: Approx. 6.7 Megapixels (2976 x 2240)*
Small 2: Approx. 2.2 Megapixels (1696 x 1280)*
Small 3: Approx. 0.31 Megapixels (640 x 480)
16:9 Aspect Ratio
Large/RAW: Approx. 25.4 Megapixels (6720 x 3776)*
mRAW: Approx. 14.3 Megapixels (5040 x 2836)*
Medium: Approx. 11.2 Megapixels (4464 x 2512)*
Small 1/sRAW: Approx. 6.3 Megapixels (3360 x 1888)*
Small 2: Approx. 2.1 Megapixels (1920 x 1080)
Small 3: Approx. 0.29 Megapixels (720 x 408)*
1:1 Aspect Ratio
Large/RAW: Approx. 20.1 Megapixels (4480 x 4480)
mRAW: Approx. 11.3 Megapixels (3360 x 3360)
Medium: Approx. 8.9 Megapixels (2976 x 2976)
Small 1/sRAW: Approx. 5.0 Megapixels (2240 x 2240)
Small 2: Approx. 1.6 Megapixels (1280 x 1280)
Small 3: Approx. 0.23 Megapixels (480 x 480)
Values for Recording Pixels are rounded off to the nearest 10,000th or 1,000th.
JPEG images are generated in the set aspect ratio.
RAW images are generated in [3:2], and the set aspect ratio is appended.
* Inexact proportion.
Recording Functions
Standard
Select manually to record on either the CF card or SD card.
Auto switch card
When the current card becomes full, the camera switches to the other card automatically.
Record separately
The CF card and SD card record the same image at a different image recording quality (Large/Fine, Large/Normal, Medium/Fine, Medium/Normal, Small 1/Fine, Small 1/Normal, Small 2, Small 3, RAW, mRAW, sRAW).
Record to multiple
Both the CF card and SD card record the same image at the same image recording quality (Also applies to RAW+JPEG, mRAW+JPEG, and sRAW+JPEG).
Backup Recording
N/A
File Numbering
The following three types of file numbers can be set:
Continuous numbering
The numbering of captured images continues even after you replace the card.
Auto reset
When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
Manual reset
Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
Possible
Color Space
sRGB, Adobe RGB
Picture Style
Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3
In Scene Intelligent Auto, [Auto] will be set automatically.
[Standard] is the default setting for [User Def. 1-3].
White Balance
Settings
Auto (Ambience priority/White priority), Daylight, Shade, Cloudy*, Tungsten Light, White Fluorescent Light, Flash, Custom (Custom WB), Color Temperature
* Effective also in twilight and sunset.
Auto White Balance
Option between ambience priority and white priority settings
Color Temperature Compensation
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
Corrected in reference to the current WB mode's color temperature.
Color Temperature Information Transmission
Provided
Viewfinder
Type
Eye-level SLR (with fixed pentaprism)
Coverage
Approx. 100% vertically and horizontally (at approx. 21mm eyepoint)
Magnification
Approx. 0.71
Eye Point
Approx. 21mm (at -1m-1 from the eyepiece lens center)
Dioptric Adjustment Correction
Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
Focusing Screen
Fixed
Mirror
Quick-return half mirror
Viewfinder Information
Displayed with transparent liquid crystal
AF point information
AF operation*
Area AF frame
Metering mode*
Spot metering circle
Image quality*
Electronic level (dedicated indicator)*
Digital Lens Optimizer*
Battery (remaining capacity)*
Dual Pixel RAW setting (shooting)*
Shooting mode*
Flicker detection*
White balance*
Warning symbol
Drive mode*
AF status indicator
You can select whether or not to display the asterisked items [Show/hide in viewfinder].
Depth Of Field Preview
Enabled with depth of field preview button
Autofocus
Type
TTL secondary image-forming phase-difference detection system with AF-dedicated sensor
Focusing Modes
Autofocus
One-Shot AF
Predictive AI Servo AF (AI Servo AF III)
AI Focus AF
Switches between One-Shot AF and AI Servo AF automatically.
Manual focus
AF Point Selection
Single-point Spot AF (Manual selection)
Single-point AF (Manual selection)
The checkmark cannot be removed from this option.
AF point expansion (Manual selection, 4 points: Up, down, left and right)
AF point expansion (Manual selection, surrounding 8 points)
Zone AF (Manual zone selection)
All AF points divided into nine focusing zones.
Large Zone AF (Manual zone selection)
All AF points divided into three focusing zones.
AF point Auto selection AF
Active AF Point Indicator
Displayed in viewfinder with transparent LCD and on LCD panel
AF Assist Beam
Enable
Disable
IR AF assist beam only
Exposure Control
Metering Modes
150,000-pixel RGB+IR metering sensor
153,600 effective pixels (480 x 320)
EOS iSA System with 252 zone (18 x 14) metering
Evaluative metering (linked to all AF points)
Partial metering (center, approx. 6.1% of viewfinder)
Spot metering (center, approx. 1.3% of viewfinder)
AF point-linked spot metering not provided.
Center-weighted average metering
Metering Range
EV 0-20 (at 73°F / 23°C , ISO 100)
Exposure Control Systems
(1) Scene Intelligent Auto
(2) Program AE (shiftable)
(3) Shutter-priority AE (Safety shift possible)
(4) Aperture-priority AE (Safety shift possible)
(5) Manual exposure
(6) Bulb
(7) Custom shooting mode C1, C2, C3
Exposure Compensation
Manual: ±5 stops in 1/3 or 1/2-stop increments
AEB: ±3 stops in 1/3 or 1/2-stop increments
* Indicated up to ±3 stops on the LCD panel and in the viewfinder. To set exposure compensation exceeding ±3 stops, you can use Quick Control.
* Live View shooting, exposure compensation can be set up to ±3 stops.
AE Lock
(1) Auto AE lock
·In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
(2) Manual AE lock
·With AE lock button. (AE lock is updated each time you press the button.) Enabled in all metering modes.
Shutter
Type
Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
Shutter Speeds
1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)
X-sync at 1/200 sec.
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. self-timer, 2-sec. self-timer
External Speedlite
EOS Dedicated Speedlite
E-TTL II autoflash with all EX Series Speedlites
Zooming to Match Focal Length
Provided
Flash Exposure Compensation
±3 stops in 1/3- or 1/2-stop increments
FE Lock
Provided
External Flash Settings
External flash control
Flash firing
E-TTL II Flash metering
Flash sync. speed in Av mode
Flash mode
Radio transmission wireless flash shooting
Optical transmission wireless flash shooting
Flash ratio control
Zoom
Sync setting
Flash exposure compensation
FEB
Clear settings
Flash Custom Function setting
PC Terminal
Provided (no polarity)
Drive System
Drive Modes
Single shooting
High-speed continuous shooting
Low-speed continuous shooting
Silent single shooting
Silent continuous shooting
10-sec. self-timer/remote control
2-sec. self-timer/remote control
Continuous Shooting Speed
High-speed continuous shooting: Max. approx. 7.0 fps
With 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), with a fully-charged Battery Pack LP-E6N, and at room temperature (73°F/23°C).
The maximum continuous shooting speed will decrease under the following shooting conditions:
[Anti-flicker shoot.: Enable] results in maximum approx. 6.6 fps.
[Dual Pixel RAW: Enable] and RAW or RAW+JPEG image quality.
[Digital Lens Optimizer: Enable] will greatly decrease the continuous shooting speed.
The continuous shooting speed may become slower depending on the shutter speed, aperture, subject conditions, brightness, lens, flash use, temperature, battery type, remaining battery level, etc.
With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4 L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM.
In AI Servo AF operation, the continuous shooting speed may become slower depending on the subject and the lens used.
If you use Battery Pack LP-E6 and shoot in low temperatures (battery temperature is low), the high-speed continuous shooting speed may become slower.
The continuous shooting speed may become slower if the remaining battery level is low or if you shoot under low-light conditions.
Low-speed continuous shooting: Max. approx. 3.0 fps
Silent continuous shooting: Max. approx. 3.0 fps
Live View Functions
Shooting Modes
Still photo and video recording
Focusing
Dual Pixel CMOS AF
Dual Pixel CMOS AF is possible with all EF lenses.
Manual focus
Magnify the image by 5x or 10x and focus manually.
Metering Modes
Evaluative metering 315-zone (21 x 15)
Partial metering (approx. 6.3% of Live View screen)
Spot metering (approx. 2.7% of Live View screen)
Center-weighted average metering
AE lock possible. The active metering timer can be changed.
Metering Range
EV 0-20 (at 73°F/23°C, ISO 100)
Grid Display
3x3
6x4
3x3 + diagonals
Exposure Simulation
Possible
Silent Shooting
Provided (Mode 1 and 2)
Video Shooting
File Format
MOV:
4K Video*: Motion JPEG
Full HD/HD Movie: MPEG-4 AVC/H.264 Variable (averaged) bit rate Audio: Linear PCM
MP4:
Movie: MPEG-4 AVC/H.264 Variable (averaged) bit rate Audio: AAC
*4K requires the following write speed requirements: CF UDMA7 (100MB/sec. or faster); SD UHS-I (90MB/sec. or higher)
File Size
Recording Sizes:
4096 x 2160 (4K)*, 1920 x 1080 (Full HD), 1280 x 720 (HD)
*4K requires the following write speed requirements: CF UDMA7 (100MB/sec. or faster); SD UHS-I (90MB/sec. or higher)
Frame Rates
MOV:
4096 x 2160 (4K)*: 30 fps (29.97 fps) / 24 fps / 23.98 fps
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps / 23.98 fps
1280 x 720 (HD): 120 fps (119.9 fps)
MP4:
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps / 23.98 fps
*4K requires the following write speed requirements: CF UDMA7 (100MB/sec. or faster); SD UHS-I (90MB/sec. or higher)
Focusing
Dual Pixel CMOS AF
Manual focus
Magnify the image by approx. 5x or 10x and focus manually (not possible during movie shooting).
Exposure Compensation
Up to ±3 stops in 1/3-stop increments
LCD Monitor
Type
TFT color, liquid-crystal monitor
Monitor Size
3.2-inch (Screen aspect ratio of 3:2)
3.19 in./8.10cm diagonal (2.65 in./6.74cm width, 1.77 in./4.49cm height)
Pixels
Approx. 1.62 million dots
Coverage
Approx. 100%
Viewing angle: 170° vertically and horizontally
Brightness Control
Automatic
Manually adjustable to one of seven brightness levels
Coating
Clear View LCD II
Anti-smudge coating
Anti-reflection coating
Interface Languages
25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)
Tilt Display
On LCD Monitor
Electronic level indicates up to 360° roll and ±10° pitch in 1° increments.
Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°.
In Viewfinder
Electronic level indicates up to 7.5° roll left/right and ±4° pitch in 1° increments.
Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°.
Playback
Display Format
Single image display:
No information display
Basic information display
Detailed shooting information display
Basic shooting information
Lens/histogram information
White balance information
Picture Style information 1
Picture Style information 2
Color space/noise reduction information
Lens aberration correction information 1
Lens aberration correction information 2
GPS information
IPTC information (First for EOS)
Index display:
4-image index
9-image index
36-image index
100-image index
Highlight Alert
With single-image display (Info.) and single-image display, the white areas with no image data will blink.
Quick Control Function
Items
Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback.
Image Protection and Erase
Protection
Erase protection can be applied or canceled for a single image (select image), all images in a folder or all images in the card.
Erase
Erase a single image (playback and erase image), selected images, all images in a folder or all images in a card.
Direct Printing
Compatible Printers
Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.
Printable Images
Individual images
Specify images by folder
Specify all images in card
RAW images and movies cannot be specified for printing.
DPOF: Digital Print Order Format
DPOF
Compliant to DPOF Version 1.1
Direct Image Transfer
Compatible Images
JPEG images
RAW images
Movies
Customization
Custom Functions
17 Custom Functions settable with the camera
Custom Controls
Functions can be assigned to the following buttons:
Shutter button halfway pressing
AF-ON button
AE lock button
Depth of field preview button
Lens AF stop button
Multi-function button
SET button
Main Dial
Quick Control Dial
Multi controller
AF area selection button
Camera User Settings
Current camera settings can be registered to C1, C2 and C3 on the Mode Dial.
My Menu Registration
Up to six top-tier menu options and Custom Functions can be registered.
Up to five My Menu tabs can be added.
My Menu tab overall operations
Adding a tab
Deleting tabs in a batch
Deleting all tab items
Setting the menu display
My Menu tab detailed operations
Selecting a registered item
Sorting registered items
Deleting selected registered items
Deleting registered items in a batch
Deleting tabs
Changing a tab name (16 ASCII characters)
Interface
USB Terminal
For computer communication
For WFT-E7 (Ver.2.0) connection
For Connect Station CS100 connection
Video Out Terminal
HDMI Type C (Resolution switches automatically), CEC compatible
Images can be displayed through the HDMI output and on LCD monitor at the same time.
Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
Power Source
Battery
Battery Pack LP-E6N (or LP-E6) x 1
With the AC Adapter + DC Coupler, AC power is possible.
When the Battery Grip BG-E20 is used, two battery packs (LP-E6N or LP-E6) can be installed.
Configuration Shooting Method Battery Temperature Possible Shots
Camera Body Only Viewfinder shooting LP-E6N At 73°F/23°C 900
At 32°F/0°C 850
Live View Shooting LP-E6N At 73°F/23°C 300
At 32°F/0°C 280
With Battery Grip
BG-E20 Viewfinder shooting LP-E6N x2 At 73°F/23°C 1800
At 32°F/0°C 1700
Live View Shooting LP-E6N x2 At 73°F/23°C 600
At 32°F/0°C 560
Battery Check
Automatic battery check when the power switch is turned ON. Displayed in 6 levels.
Battery level displayed on the LCD panel and in the viewfinder.
One of six levels displayed for LP-E6N and LP-E6. The display for other power sources is different.
Power Saving
Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses.
Even when you set the date, time or zone and 1, 2 or 4 min. is set, it will take 6 min. for auto power off to take effect.
Date/Time Battery
Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months
Recharge time: approx. 8 hr.
The recharge time required to provide the above number of months with no battery pack installed.
Start-up Time
Approx. 0.1 sec
Based on CIPA testing standards
Dimensions and Weight
Dimensions (W x H x D)
Approx. 5.93 x 4.58 x 2.99 in. / 150.7 x 116.4 x 75.9mm
Weight
Approx. 31.39 oz. / 890g (Including battery, CF card and SD memory card)
Approx. 28.22 oz. / 800g (Body only; without battery, card, body cap and eyecup)
Operating Environment
Working Temperature Range
32-104°F/0-40°C
Working Humidity Range
85% or less
