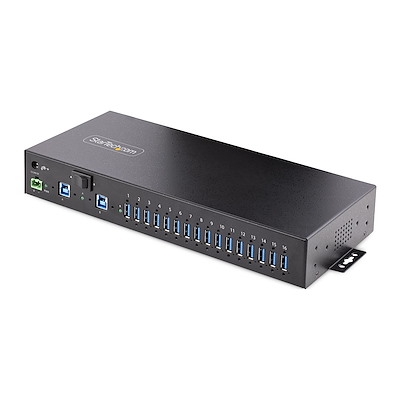

STARTECH 16 PORT INDUSTRIAL USB 3.0 HUB/SWITCH 5GBPS, METAL, MOUNTABLE 2YR 5G16AINDS-USB-A-HUB
| SKU: | 403071 |
|---|---|
| MPN: | 5G16AINDS-USB-A-HUB Link |
| Manufacturer: | https://www.startech.com |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)
FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections
POWER OPTIONS: The rugged USB 3.0 hub can be powered by either the DC barrel connection or DC 2-wire terminal block, using a 12 to 24V DC power source (DC adapter not incl.); Overcurrent protection protects connected devices from overdrawing power
POWER & CHARGE: When connected to a power source, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging
DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch
Specifications
Warranty Information
Warranty
2 Years
Connector(s)
Connector A
1 - Terminal Block (2 Wire)
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
External Ports
16 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
Host Connectors
2 - USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps)
Environmental
Operating Temperature
32°F to 140°F (0°C to 60°C)
Storage Temperature
-4°F to 167°F (-20°C to 75°C)
Humidity
5% - 95% RH
Hardware
U Height
1U
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
Yes
Ports
16
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Chipset ID
Genesys Logic - GL3523
Indicators
LED Indicators
1 - Power (Green) - Solid Green - Indicates if the USB Hub is receiving power from either a USB Host or a DC Power Source
2 - USB Host Selection LEDs - Solid Green - Indicates which Host Device is currently selected
Packaging Information
Package Length
14.5 in [36.8 cm]
Package Width
10.7 in [27.3 cm]
Package Height
3.9 in [9.8 cm]
Shipping (Package) Weight
4.0 lb [1.8 kg]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
MTBF
122,383.8 Hours
Physical Characteristics
Color
Black
Product Length
0.5 in [1.3 cm]
Product Width
1.2 in [3.1 cm]
Product Height
0.2 in [4.4 mm]
Weight of Product
2.4 lb [1.1 kg]
Material
Steel
Power
Power Source
Not Included (DC/Terminal Block)
Input Voltage
12 ~ 24 DC
Plug Type
M
Terminal Block (2 Wire)
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
Available USB 3.2 Gen 1 Port
USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0
Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
What's in the Box
Included in Package
1 - USB Hub
1 - 10 ft [3 m] USB-A to USB-B Cable
1 - Terminal Block Connector (Attached)
2 - Rack Mounting Brackets
2 - DIN Rail Brackets
4 - DIN Bracket Screws
6 - Rack Mounting Screws
1 - Quick-Start Guide
