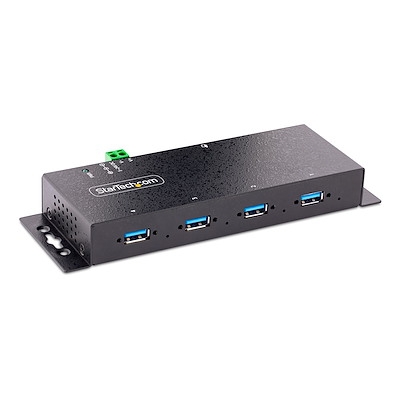

STARTECH 4 PORT INDUSTRIAL USB 3.0 5GBPS HUB MOUNTABLE RUGGED USB-A HUB 2YR 5G4AINDNP-USB-A-HUB
| SKU: | 404864 |
|---|---|
| MPN: | 5G4AINDNP-USB-A-HUB Link |
| Manufacturer: | https://www.startech.com |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
4-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 expansion hub w/metal enclosure for durability in harsh environments; Provides 4 USB 3.0 Type-A Downstream Facing Ports (DFP); 5Gbps shared; 6ft A-B host cable; USB Event Monitoring utility (available for download)
ESD PROTECTION: Heavy duty USB hub w/ level 4 electrostatic discharge protection; 15kV air/8kV contact (twice the level of consumer grade hubs) provides increased reliability and longevity; Competitor hubs without adequate ESD protection may fail
FLEXIBLE MOUNTING OPTIONS: Built-in mounting brackets for wall or desk installation; DIN rail mounting hardware included; Screw-lock connectors on host and device ports to ensure a reliable and secure connection
POWER OPTIONS: Rugged multiport hub is powered by either the DC barrel connection or terminal block using a 5 to 24V DC source (DC source not incl.); Optional power adapter available ITB20D3250 (sold separately) to power the hub via 2-wire terminal block
POWER & CHARGE: When connected to a power source, the mountable port expander hub supports BC 1.2 charging; Each port supports 12W (2.4A); Overcurrent protection protects connected devices from overdrawing power
Specifications
Warranty Information
Warranty
2 Years
Connector(s)
External Ports
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
1 - Terminal Block (2 Wire)
4 - USB Type-A (9 pin, 5 Gbps)
1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
32°F to 140°F (0°C to 60°C)
Storage Temperature
-4°F to 167°F (-20°C to 75°C)
Humidity
5% - 95% RH
Hardware
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
No
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Chipset ID
VIA/VLI - VL817-Q7
Indicators
LED Indicators
4 - USB Device Connection (Green)
1 - Power (Green)
Packaging Information
Package Length
8.4 in [21.3 cm]
Package Width
5.9 in [14.9 cm]
Package Height
2.0 in [5.1 cm]
Shipping (Package) Weight
1.1 lb [0.5 kg]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
MTBF
243,753 Hours
Physical Characteristics
Color
Black
Form Factor
Industrial
Product Length
7.0 in [17.8 cm]
Product Width
2.3 in [5.9 cm]
Product Height
0.9 in [2.3 cm]
Weight of Product
9.9 oz [280.0 g]
Material
Steel
Cable Length
6.0 ft [1.8 m]
Power
Power Source
Not Included (DC/Terminal Block)
Plug Type
M
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
Available USB 3.2 Gen 1 Port
USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0
What's in the Box
Included in Package
1 - USB Hub
1 - 6 ft [1.8 m] USB-A to USB-B Cable
1 - Terminal Block Connector (Attached)
1 - DIN Rail Mounting Brackets (with Mounting Screws)
1 - Quick-Start Guide
