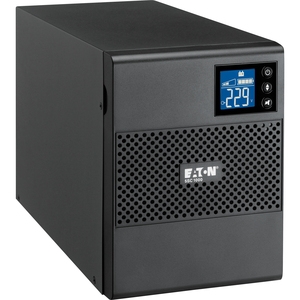

EATON Powerware 5SC 750VA / 525W Line Interactive Sine Wave Mini Tower UPS
6 x IEC Sockets
• The new LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
• The 5SC offers USB, serial, and relay connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux.
• Eaton Intelligent Power Protector ® (IPP) software delivered as standard, can be used as point to point power management (USB/Serial) or Network based using IPP as a proxy.
General
Topology Line-interactive high frequency with booster + fader, pure sinewave output
Configuration Tower
Part Number 5SC750i
Color Black
Rating (VA/Watts) 750/525
Dimensions (H x W x D, mm) 210 x 150 x 340
Weight (kg) 10.4
Warranty 2 years

Electrical Input
Connection
(1) IEC-320-C14
C14
Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45?55Hz (50Hz system), 55?65Hz (60Hz system)
Battery Management ABM®, Automatic battery test, deep discharge protection
Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)

Environmental & Standards
Audible Noise <40 dB
Operating Temperature 0?35?C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)
Electrical Output
Voltages 230V (+6/?10 %) (Adjustable to 220V/230V/240V)
Output Receptacles
(6) IEC-320-C13
C13
Output Frequency 50/60Hz +/?0.1 % (autosensing)
