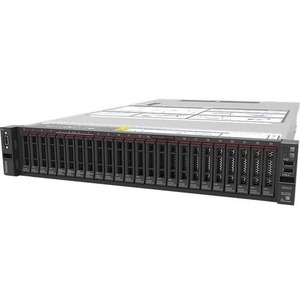

Lenovo ThinkSystem SR650, 1xIntel Xeon Silver 4210 10C 2.2GHz 85W, 1x32GB 2Rx4, RAID 930-8i 2GB Flash PCIe 12Gb Adapter, 7X06A0E3AU
1x750W, XCC Enterprise, ThinkSystem Toolless Slide Rail Kit with 2U CMA
$4,572.00
| SKU: | 378678 |
|---|---|
| MPN: | 7X06A0E3AU |
| Manufacturer: | https://www.lenovo.com/ |
| Brand: | Lenovo |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
ThinkSystem SR650, 1xIntel Xeon Silver 4210 10C 2.2GHz 85W, 1x32GB 2Rx4, RAID 930-8i 2GB Flash PCIe 12Gb Adapter, 1x750W, XCC Enterprise, ThinkSystem Toolless Slide Rail Kit with 2U CMA
Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
 |
Guides & Documents
Specifications
▼
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | Up to 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 930-8i |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 1 |
Physical Characteristics
| Weight (Approximate) | 32 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 718.8 mm |
Software
| Operating System | No |
| Operating System Supported | Windows Server 2019 |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 8.2 | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 7.6 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| Red Hat Enterprise Linux 8.1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| Red Hat Enterprise Linux 7.8 | |
| SUSE Linux Enterprise Server 15 SP1 |
Memory
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 24 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.93 GHz |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4210 |
| Processor Core | Deca-core (10 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 4 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express x8 (Gen 3.x) Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | 3x PCIe x8 1x PCIe x16 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X06A0E3AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X06A0E3AU |
| Product Name | ThinkSystem SR650 7X06A0E3AU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Brand Name | Lenovo |
