SPECIFICATIONS
PART NUMBER
941-000110
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
SYSTEM REQUIREMENTS
Playstation®4 or Playstation®3
Powered USB port

OR

Windows® 8.1, Windows 8 or Windows 7

Powered USB Port
Internet connection and 150MB hard drive space (for optional software download)
Games that support Logitech® force feedback racing wheel
PACKAGE CONTENTS
Steering wheel
Pedals
Power adapter
User documentation

PHYSICAL SPECIFICATIONS
Wheel
Height: 270 mm (10.63 in)
Width: 260 mm (10.24 in)
Length: 278 mm (10.94 in)
Weight without cables: 2.25 kg (4.96 lb)
Pedal
Height: 167 mm (6.57 in)
Width: 428.5 mm (16.87 in)
Depth: 311 mm (12.24 in)
Weight without cables: 3.1 kg (6.83 lb)
TECHNICAL SPECIFICATIONS
Software Support (at release): Logitech Gaming Software
Connection Type: USB
USB VID_PID: 046D_C24F (PC Mode)
USB Protocol: USB 2.0
USB Speed: Full Speed
Indicator Lights (LED): Yes
Wheel
Rotation: 900 degrees lock-to-lock
Hall-effect steering sensor
Dual-Motor Force Feedback
Overheat safeguard

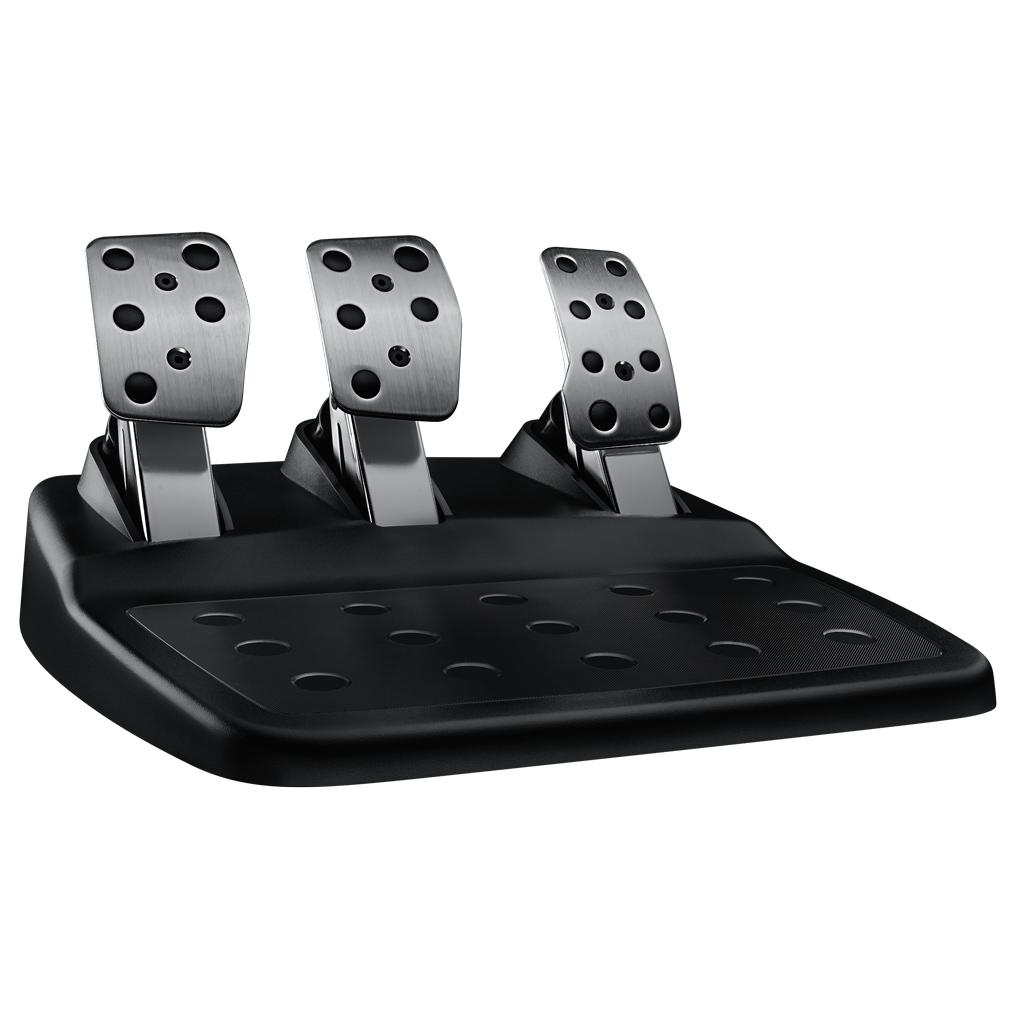

Pedals
Nonlinear brake pedal
Patented carpet grip system
Textured heel grip
Self-calibrating

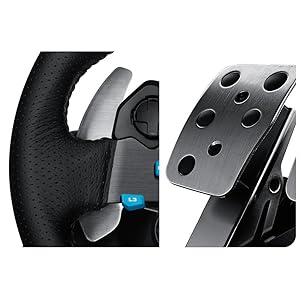

Materials
Wheel spokes: Anodized aluminum
Wheel cover Hand-stitched leather
Steering shaft: Steel
Shifter paddles: Brushed stainless steel
Mounting clamps: Glass-filled nylon
Pedal frames and arms: cold rolled steel
Pedal faces: Brushed stainless steel
Pedal piston sleeves: Polyoxymethylene thermoplastic (POM)

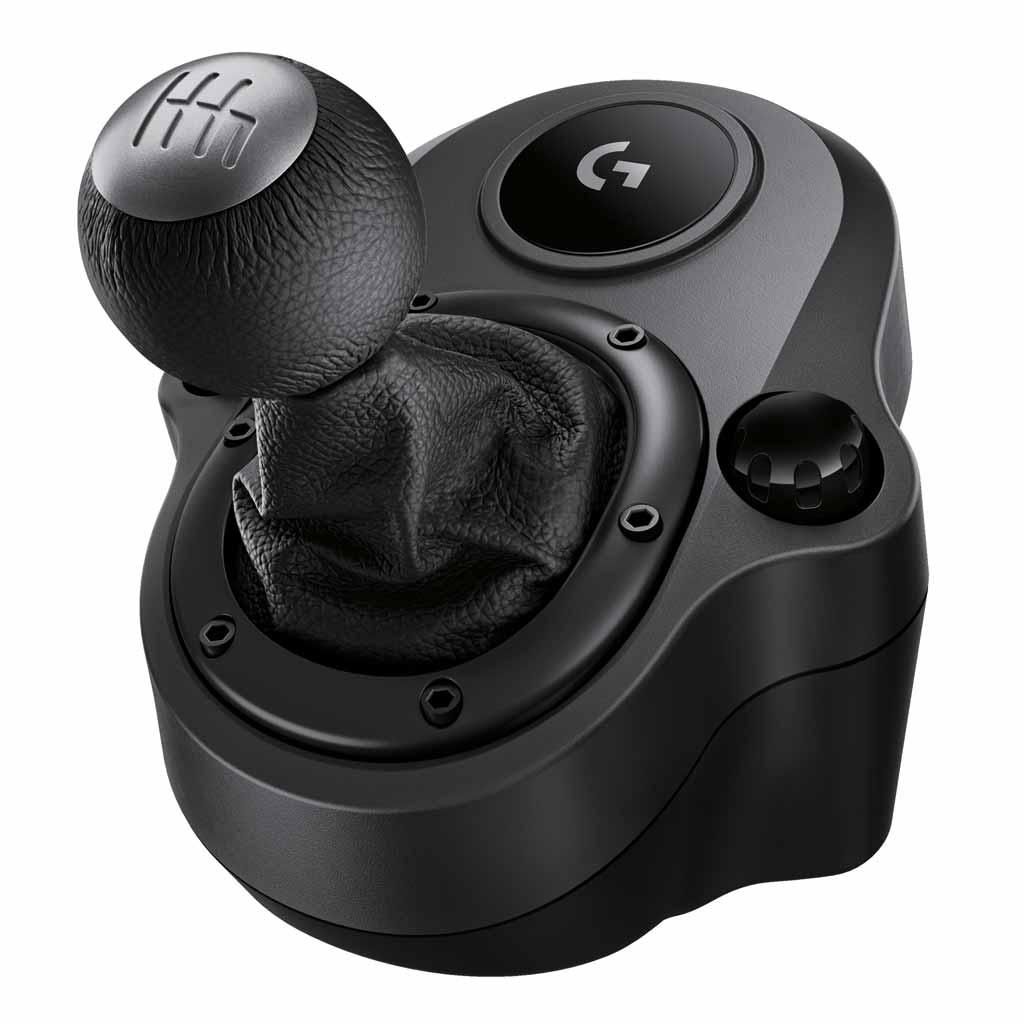

The G29 driving force steering wheel is designed for the latest racing games and works on your PC, PlayStation 4 or PlayStation 3 console. It features dual motor force feedback allowing you to feel your tyres on every turn and type of terrain as well as over and under steer. Adjustable pedal faces let you have even finer control making heal-toeing a breeze while the 900 degree steering input means it takes two and a half times for full lock - which is the same as a real car for a real racing experience. The G29 does not include the 6 speed manual shifter but is sold separately.
