POWERBOX ACPS13.8 WM 13.8VDC 3.5A POWER SUPPLY (50W) & WMBB ENLOSURE -2YRS
SKU: | 409412 |
---|---|
MPN: | ACPS13.8 |
Brand: | PSS |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
QTY | SKU | DESCRIPTION |
---|---|---|
1 | WMBB-C-S-D | POWERBOX WM ENCLOSURE (375WX362HX110D) -2YRS |
1 | PBB2S-13-3.5 | POWERBOX ACPS13.8 CME 13.8VDC 3.5A POWER SUPPLY (50W) -2YRS |

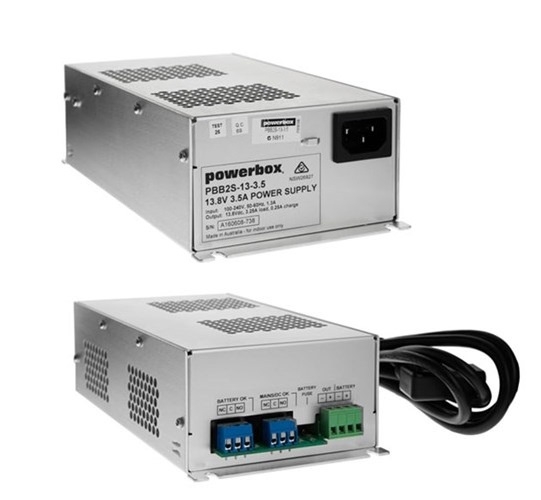

The PBB2S-13-3.5-WMBB-K includes the PBB2S-13-3.5 PSU and the WMBB enclosure. Accepts Batteries 7AH to 17AH (Not included) The PBB2S1335 is a 13.8Vdc, 3.5A off-line battery charger / DC uninterrupted power supply which operate from 100-240Vac mains power. When connected to a valve regulated lead-acid (VRLA) battery, these units provide uninterrupted power to a DC load in the event of mains failure. The PBB2S Series contains a two-step current limited float charger, output over-current and short circuit protection, a self-resetting battery fuse, over-temperature protection, and mains DC OK battery OK and battery fuse fail alarms. The PBB2S is available in a light weight corrosion resistant aluminium chassis mount enclosure. - 12VDC 3.5A power supply for battery backup. - High reliability and high efficiency. - Industrial-grade switching power converter. - Light weight corrosion resistant aluminium enclosure. - Output over current and short circuit protection. - Separate current-limited battery charging output. - Output over voltage protection. - Self-resetting battery fuse. - Over temperature protection. - Mains OK / DC OK - Green LED and alarm contact. - Green Battery OK - Green LED and alarm contact. - Battery Fuse Fail - Red LED. - Dimensions 219 (L) x 114 (W) x 62 mm (D).
Specifications
Model | PBB2S-13-3.5-WMBB-K |
Voltage [V] | 190 - 265Vac 1ø |
Frequency [Hz] | 45 - 65Hz |
Current [A] | 1.3 max. |
Vout | 13.8Vdc |
Total Power | 50W |
Itotal | 3.5A |
Iout | 3.25A |
Ptot | 50W |
Dimensions (LxWxH) | 375 x 362 x 111.5mm |
Battery Configurations (Not included) | 1 x 12V 7Ah or 1 x 12V 9Ah or 1 x 12V 17Ah |
