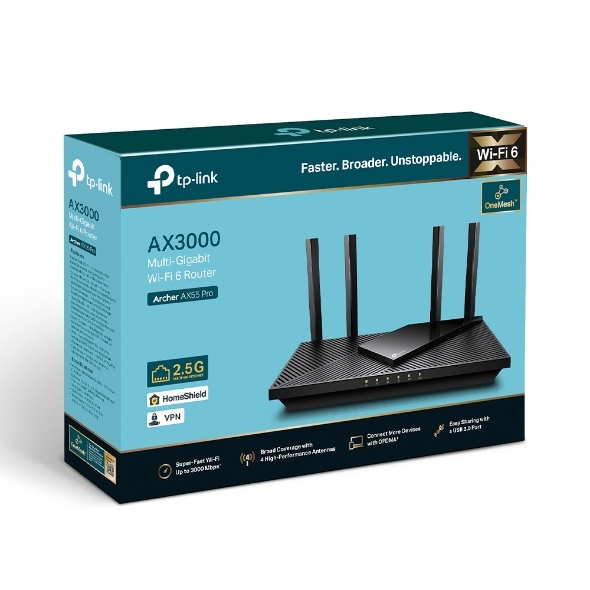

    main product photo

    TP-LINK ARCHER AX55 PRO AX3000MULTI-GIGABIT WI-FI 6 ROUTER, WAN, LAN(4), USB, 3YR ARCHER-AX55-PRO

    $173.00
    SKU:397547
    MPN:ARCHER AX55 PRO Link
    Manufacturer:https://www.tp-link.com
    Brand: Tplink
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    WIRELESS
    Standards Wi-Fi 6
    • IEEE 802.11ax/ac/n/a 5 GHz
    • IEEE 802.11ax/n/b/g 2.4 GHz
    WiFi Speeds AX3000
    • 5 GHz: 2402 Mbps (802.11ax, HE160)
    • 2.4 GHz: 574 Mbps (802.11ax)
    WiFi Range 3 Bedroom Houses
    • 4× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas

    • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range

    • High-Power FEM
    Improves transmission power to strengthen signal coverage
    WiFi Capacity High
    • Dual-Band
    Allocate devices to different bands for optimal performance

    • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients

    • Airtime Fairness
    Improves network efficiency by limiting excessive occupation

    • DFS
    Access an extra band to reduce congestion

    • 4 Streams
    Connect your devices to more bandwidth
    Working Modes • Router Mode
    • Access Point Mode
    HARDWARE
    Ethernet Ports • 1× 2.5 Gigabit WAN/LAN Port
    • 1× Gigabit WAN/LAN Port
    • 3× Gigabit LAN Ports
    USB Support 1× USB 3.0 Port

    Supported Partition Formats:
    NTFS, exFAT, HFS+, FAT32

    Supported Functions:
    Apple Time Machine
    FTP Server
    Media Server
    Samba Server
    Buttons Wi-Fi/WPS Button
    Power On/Off Button
    Reset Button
    Power • 12 V/ 2 A (US Version)
    • 12 V/ 1.5 A (EU Version)
    SECURITY
    WiFi Encryption • WPA3*
    • WPA2
    • WPA
    • WPA/WPA2-Enterprise (802.1x)
    Network Security SPI Firewall
    Access Control
    IP & MAC Binding
    Application Layer Gateway

    HomeShield Security
    Real-Time IoT Protection
    Malicious Site Blocker
    Intrusion Prevention System
    DDoS Attack Prevention
    Home Network Scanner
    Guest Network • 1× 5 GHz Guest Network
    • 1× 2.4 GHz Guest Network
    VPN Server • OpenVPN
    • PPTP
    • L2TP
    VPN Client • OpenVPN
    • PPTP
    • L2TP
    SOFTWARE
    Protocols • IPv4
    • IPv6
    Service Kits HomeShield
    Learn More>
    OneMesh™ OneMesh™ Supported
    Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
    Learn More>
    All OneMesh Products>
    Parental Controls HomeShield Parental Controls
    • Custom Profiles
    • Professional Content Filter Library
    • Family Time
    • Bedtime
    • Off Time
    • Time Rewards
    • Family Online Time Ranking
    • Pause the Internet
    • Weekly and Monthly Reports
    WAN Types • Dynamic IP
    • Static IP
    • PPPoE
    • PPTP
    • L2TP
    Quality of Service QoS by Device
    Cloud Service • Auto Firmware Upgrade
    • OTA Firmware Upgrade
    • TP-Link ID
    • DDNS
    NAT Forwarding • Port Forwarding
    • Port Triggering
    • DMZ
    • UPnP
    IPTV • IGMP Proxy
    • IGMP Snooping
    • Bridge
    • Tag VLAN
    DHCP • Address Reservation
    • DHCP Client List
    • Server
    DDNS • TP-Link
    • NO-IP
    • DynDNS
    Management • Tether App
    • Webpage
    Check Web Emulator>
    OTHER
    System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

    Cable or DSL Modem (if needed)

    Subscription with an internet service provider (for internet access)
    Certifications FCC, CE, RoHS
    Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    Operating Humidity: 10%~90% non-condensing
    TEST DATA
    WiFi Transmission Power • CE:
    <20dBm(2.4GHz)
    <23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
    <30dBm (5.47GHz~5.725GHz)
    • FCC:
    <30dBm (2.4GHz)
    <30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)
    <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)
    WiFi Reception Sensitivity • 2.4 GHz:
    11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,
    11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
    11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
    11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
    • 5 GHz:
    11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
    11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
    11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
    11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
    11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
    11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
    11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm
    PHYSICAL
    Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in
    (261.1 × 134.5 × 41.0 mm)
    Package Contents • Wi-Fi Router Archer AX55 Pro
    • Power Adapter
    • RJ45 Ethernet Cable
    • Quick Installation Guide
    TP-LINK ARCHER AX55 PRO AX3000MULTI-GIGABIT WI-FI 6 ROUTER, WAN, LAN(4), USB, 3YR
