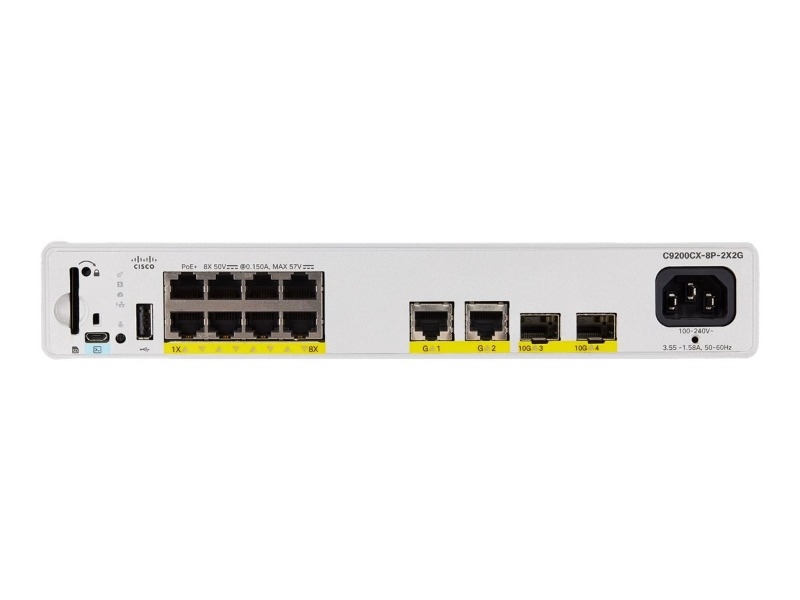

CISCO (C9200CX-8P-2X2G-E) CATALYST 9000 COMPACT SWITCH 8 PORT POE+, 240W, ESSENTIALS C9200CX-8P-2X2G-E
$2,683.00
| SKU: | 419818 |
|---|---|
| MPN: | C9200CX-8P-2X2G-E |
| Manufacturer: | https://www.cisco.com/c/en_au/index.html |
| Brand: | Cisco |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Cisco Catalyst 9200CX - Network Essentials - switch - compact - L3 - Managed - 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (240 W)
Specifications
▼
| Product Description | Cisco Catalyst 9200CX - Network Essentials - switch - compact - 8 ports - Managed - rack-mountable |
| Device Type | Switch - 8 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 60 Gbps ? Forwarding rate: 95.23 Mpps ? Packet buffer size: 6 MB |
| Capacity | Virtual networks: 16 ? IPv4 routes: 14000 ? Direct IPv4 routes: 10000 ? Indirect IPv4 routes: 4000 ? IPv4 routing entries: 4000 ? IPv6 routing entries: 2000 ? Multicast scale: 1000 ? QoS scale entries: 1000 ? ACL scale entries: 1600 ? Flexible NetFlow entries: 16000 ? VLAN IDs: 4096 ? PVST instances: 128 ? STP Virtual Ports for PVST: 13000 ? STP Virtual Ports for MST: 13000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, trustworthy systems |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 26.9 cm x 24.4 cm x 4.4 cm |
| Weight | 2.99 kg |
| Manufacturer Warranty | Limited lifetime warranty |
