COMMBOX (CBIA75) 75" 4K UHD INTERACTIVE ATOM DISPLAY, 40-PT TOUCH, ANDROID 13, 4Y CBIA75
SKU: | 419379 |
---|---|
MPN: | CBIA75 |
Manufacturer: | https://commbox.com.au/ |
Brand: | COMMBOX |
Warranty: | Standard Manufacturer's Warranty |
Availability: | Preorder 2-3 weeks |
Fright Estimate |
Description

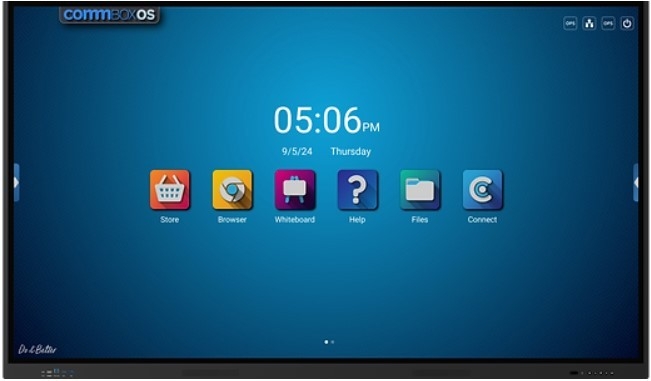

Simple - Reliable - Affordable The CommBox Atom is a versatile and affordable interactive display designed for both education and business environments. Available in 65", 75", and 86" sizes, it features CommBox OS Lite powered by Android 13, offering a smooth and intuitive user experience. The high-quality 4K display, combined with 40 points of touch, makes it perfect for interactive lessons and collaborative meetings. In schools, the Atom enhances learning with its reliable performance, infinite whiteboarding capabilities, and easy screen sharing. For businesses, it integrates seamlessly with Microsoft Teams Rooms (MTR) and other collaboration tools, boosting meeting efficiency and engagement. The Atom's robust design, powerful audio system, and comprehensive connectivity options make it a valuable addition to any setting.
Specifications
LCD SIZE | 75" |
SCREEN TYPE | LCD IPS 4K |
GLASS TYPE AND THICKNESS | TOUGHEN GLASS 3.2MM GRADE MOHS LEVEL 8 |
TOUCH TYPE | ADVANCED INFRA-RED TOUCH FRAME |
TOUCH ACCURACY | 1MM |
BACKLIGHT TYPE | D-LED |
ORIENTATION | LANDSCAPE |
ASCPECT RATIO | 16:09 |
RESOLUTION | 3830 (h) X 2160 (V) |
VIEW AREA (H)/(v)MM | 1647.36mm*926.64mm |
BRIEGHTNESS (cd/m2) | 400 |
CONTRAST RATIO | 1200:01:00 |
LCD REFRESH RATE | 60Hz |
VIEWING ANGLE | 178 DEGREES |
LIFE OF SCREEN (HRS) | 30,000 |
DISPLAY COLOURS | 1.07B |
RESPONSE TIME | <8MS |
MINIMUM TOUCH OBJECT | 1.6MM |
WINDOWS WITH MICROSOFT INK SUPPORT | MULTI-TOUCH |
CHROMIUM, LINUX | SINGLE-TOUCH |
MAC-OS | SINGLE TOUCH - MULTI TOUCH AVAILABLE WITH DRIVER |
TOUCH TOOL | FINGER, PASSIVER STYLUS, ERASER |
PEN TYPE | 2 X DUAL TIP STYLUS |
PEN TIP DIAMETER | 3MM/8MM |
AUDIO | DUAL FRONT FACING SPEAKERS, 2.0 SOUND CHANNEL, 2 X 16W SPEAKER |
OPERATING SYSTEM | ANDROID 13 |
SYSTEM VERSION | ANDROID OS LITE |
RAM | 8GB |
ROM | 64GB |
ARCHITECTURE | DUAL QUAD CORE |
RS232 CONTROL, IP CONTROL, WAKE ON LAN | YES |
POWER REQUIREMENTS | 240V |
POWER CONSUMPTION W SLOT IN PC | 300W |
STAND BY | <0.5W |
CONNECTIVITY | WI-FI AND BLUETOOTH |
INPUTS AND OUTPUTS FRONT | 1 X HDMI In, 2 X USB-A 3.0, 1 X USB TOUCH, 1-65W CHARGING USB TYPE-C (BACK), 2 X HDMI IN, 1 X DISPLAY PORT, 1 X VGA, 1 X HDMI OUT |
INPUTS AND OUTPUTS BACK (CONT) | 1 X USB A 2.0, 2 X USB A 3.0, 3 X USB-B TOUCH, 1 X 15W CHARGING USB C, 1 X AUDIO IN, 1 X SPDIF OUT, 1 X RS232, 2 X LAN RJ45, 1 X OPS SLOT |
HOUSING | ALUMINIUM/METAL PLATE |
PRODUCT SIZE | 1716.5x86.9 x 1031.8mm |
NET WEIGHT | 52KG |
GROSS WEIGHT | 61.5KG |
VESA | 800 x 400 |
WHAT'S IN THE BOX | 2 X AAA BATTERIES, 1 X REMOTE, 2 X STYLUS, 1 X 3M POWERCORD - AU/NZ, 1 X 3M POWERCORD - UK, 1 X 3M USB A-B TOUCH CABLE, 1 X 3M USB-C CABLE, 1 X 3M HDMI CABLE, 1 X COMMBOX ERASER, 1 X WALL BRACKET AND MOUNTING |
COMMBOX EXPERIENCE | 4 YEAR WARRANTY, UNLIMITED FREE VIRTUAL TRAINING FOR THE LIFE OF THE SCREEN, SAME BUSINESS DAY HELP DESK SUPPORT |
PRE-INSTALLED APPLICATIONS | COMMBOX OS LITE, COMMBOX TOOLS, COMMBOX CONNECT POWERED BY E-SHARE, COMMBOX STORE, COMMBOX WHITEBOARD, COMMBOX MANAGE 7 YEAR LICENSE NOT INCLUDED |
CERTIFICATIONS | RoHS, RCM, CE, CB |
