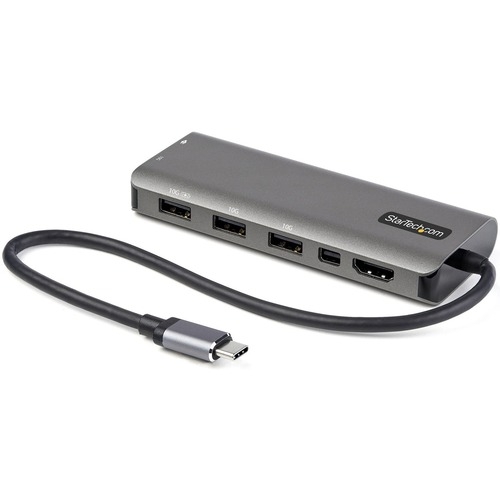

Startech.Com USB C Multiport Adapter - USB-C to HDMI or Mini DisplayPort 4K 60Hz 100W Power Delivery Pass-Through 4-Port 10Gbps USB Hub - USB Type-C Mini Dock - w/ 12in Attached Cable DKT31CMDPHPD

$149.00
SKU:381905
MPN:DKT31CMDPHPD Link
Manufacturer:https://www.startech.com/
Brand: Startech.Com
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

StarTech.com USB 3.1 (3.1 Gen 2) Type C Docking Station for Notebook/Tablet/Workstation/Monitor - 100 W - 1 Displays Supported - 4K - 4096 x 2160 - 3 x USB Ports - 1 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - Network (RJ-45) - 1 x HDMI Ports - HDMI - Mini DisplayPort - Thunderbolt - Wired - Gigabit Ethernet - Windows, macOS, Chrome OS, iPadOS, Ubuntu, Android

This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.

Maximum Resolution

The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.

DP Alt Mode Required Maximum Resolution

DP 1.2 Alternate Mode Up to 4K 30Hz DP 1.4 Alternate Mode Up to 4K 60Hz

Connect Your Devices

The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.

Charge Your Laptop and Peripheral

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

The DKT31CMDPHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Maximum Power Supply Wattage 100 W
Physical Characteristics
Weight (Approximate) 85 g
Height 160 mm
Width 424.2 mm
Technical Information
Device Supported Notebook/Tablet/Workstation/Monitor
Connectivity Technology Wired
Number of Displays Supported 1
Supported Resolutions 4096 x 2160
Screen Mode Supported 4K
Interfaces/Ports
Host Interface USB 3.1 (3.1 Gen 2) Type C
HDMI Yes
Number of HDMI Ports 1
Network (RJ-45) Yes
Total Number of USB Ports 3
Thunderbolt Yes
Mini DisplayPort Yes
USB Type-C Yes
USB Type-C Detail USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) ; USB-C (24 pin) USB Power Delivery only
Number of USB Type-C Ports 1
Number of USB Type-A Ports 1
USB Type-A Yes
General Information
Product Type Docking Station
Manufacturer Part Number DKT31CMDPHPD
Manufacturer Website Address http://www.startech.com/au
Manufacturer StarTech.com
Product Name Docking Station
Brand Name StarTech.com
Miscellaneous
Compatibility
    • Microsoft Surface Pro 7
    • Apple iPad Pro
    • HP Elite Notebook
    • Dell XPS 13 9310
    • Lenovo X1 Carbon 9th Gen
    • Apple MacBooks
    • Microsoft Surface Laptop 4
    • Google Chromebook
Brand Compatibility HP
Lenovo
Apple
Dell
Microsoft
Software
Operating System Supported iPadOS
Windows
Chrome OS
macOS
Ubuntu
Android
