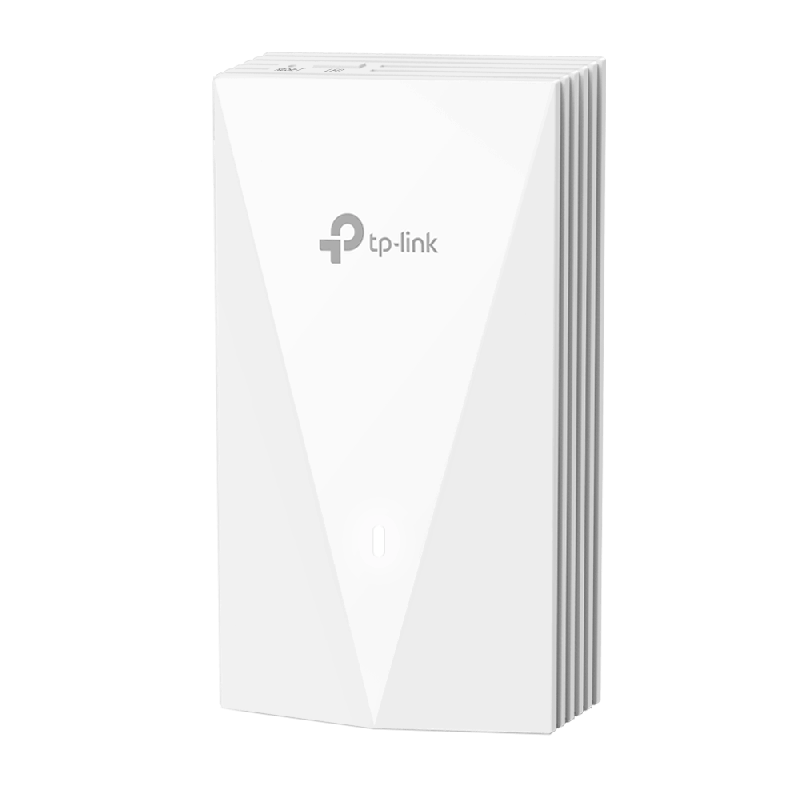

    main product photo

    TP-LINK EAP655-WALL AX3000 WALL PLATE WIFI 6 ACCESS POINT, 5YR EAP655-WALL

    $139.00
    SKU:397572
    MPN:EAP655-WALL Link
    Manufacturer:https://www.tp-link.com
    Brand: Tplink
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    HARDWARE FEATURES
    Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
    • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
    Physical Security Lock No
    Button Reset, LED
    Power Supply 802.3af/at PoE
    Power Consumption • EU: 12W (802.3at PoE, PoE Out off)
    • US: 12.6W (802.3at PoE, PoE Out off)
    Dimensions 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
    Antenna 2 Dual-Band Antennas
    • 2.4 GHz: 2× 3 dBi
    • 5 GHz: 2× 5 dBi
    Mounting Wall Plate Mounting (Kits included)
    WIRELESS FEATURES
    Maximum Number of Wireless Clients 100+ △
    Concurrent Clients 100+
    Wireless Standards IEEE 802.11ax/ac/n/g/b/a
    Frequency 2.4 GHz and 5 GHz
    Signal Rate • 5 GHz: Up to 2402 Mbps
    • 2.4 GHz: Up to 574 Mbps
    Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • Seamless Roaming§
    • Beamforming
    • Rate Limit
    • Load Balance
    • Airtime Fairness
    • Band Steering
    • Reboot Schedule
    • Wireless Schedule
    • RADIUS Accounting
    • MAC Authentication
    • Wireless Statistics
    • Static IP/Dynamic IP
    Wireless Security • Captive Portal Authentication§
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • VLAN
    • Rogue AP Detection
    • 802.1X Support
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
    Transmission Power • CE:
    <20 dBm (2.4GHz, EIRP)
    <23 dBm (5GHz band1 & 2, EIRP)
    <26 dBm (5GHz band3, EIRP)

    • FCC:
    < 21 dBm (2.4 GHz)
    < 21 dBm (5 GHz)
    MANAGEMENT
    Omada App Yes
    Centralized Management • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    • Omada Cloud-Based Controller
    Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1, v2c, v3
    System Logging Local/Remote Syslog Local/Remote Syslog
    SSH Yes
    Web-based Management HTTP/HTTPS
    L3 Management Yes
    Multi-site Management Yes
    Management VLAN Yes
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
    OTHERS
    Certification FCC, RoHS
    Package Contents • AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
    • Installation Guide
    • Mounting Kits
    System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
    TP-LINK EAP655-WALL AX3000 WALL PLATE WIFI 6 ACCESS POINT, 5YR
