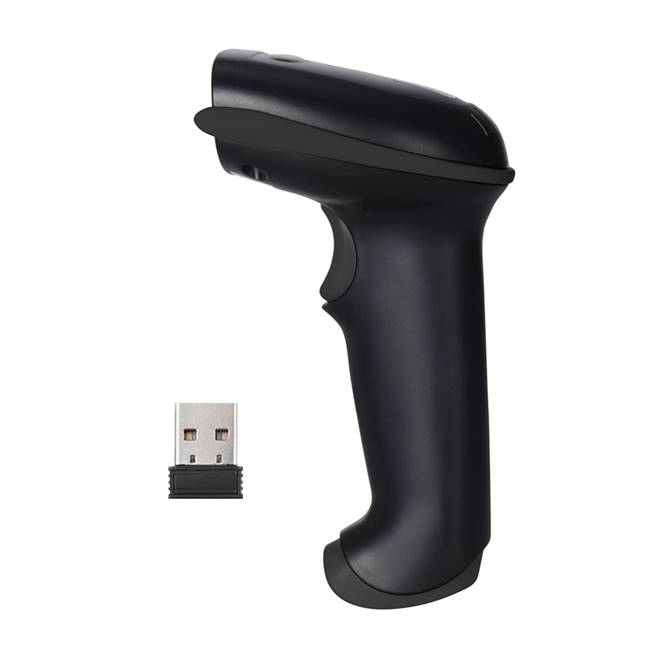

    YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner

    $51.00
    SKU:410634
    MPN:ELEINTYHD5700DB
    Brand: Others
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
  • HID/SPP Mode and can switch.
  • Supports Bluetooth/2.4G/Wired Mode, 3modes for option.
  • Supports Handheld/Continuous/Auto-Induction , 3modes for option.
  • Support over sixteen different countries' keyboard layout.
  • Excellent decoding ability, high speed and low error rate.
  • Built-in 2600mAh battery, super-long standby time.
  • Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
  • It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile.
  • phone and computer screen, and it also can read 2D barcodes.
  • Can be customized according to customer demand.

    • Technical parameters

    Product Specification: YHD-5700DB  2D Wireless Bluetooth Barcode Scanner

    Scanner parameters:

    Transmission mode: Bluetooth/2.4G/Wired

    Storage: 100,000 barcodes

    Distance: 50m/100m/1.5m

    Sensor: 640 × 480 CMOS

    CPU: ARM 32-bit Cortex

    Battery: 3.7V-2600mAh

    Indication: Buzzer & LED

    Light aimer:617nm LED

    Resolution: 4mil

    Anti-inference: 0-100000Lux Max

    Decoding speed: 500scans/sec

    Illumination:6500K LEDs

    Printing Contract: ≥25%

    Interface: USB, USB-COM

    Button life: 8000,000 times

    Material: ABS+PC

    Trigger Mode: Handheld,Continuous,Auto-Induction

    Depth

    Of

    Field

    13mil-EAN13

    50-250mm

    4mil-code39

    60-100mm

    20mil-QR

    40-300mm

    10mil-PDF417

    40-280mm

    Decode Capability:

    1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5,

    Coda bar, MSI Plessey, RSS, etc.

    2D:  QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

    Scanning angle: Angle of rotation360°, inclination± 65°, declination ± 60°

    Working current: 3.3Vx200mA

    Standby current: 18uA-5mA

    Working time: 7 to 10 days

    Charging power: 5V-400mA

    Certificate: CE, FCC, RoHS, IP54

    Drop  test: 2m
