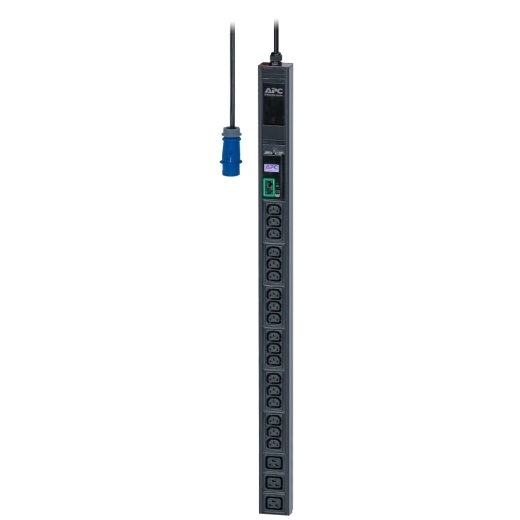

    Apc - Schneider Easy PDU Metered ZeroU 16A 230V (18)C13 and (3)C19 IEC309 EPDU1116M

    $857.00
    SKU:372480
    MPN:EPDU1116M Link
    Manufacturer:https://www.apc.com/
    Brand: Apc - Schneider
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    EPDU1116M Features

    Key Features


    Output Connections
    (3) IEC 60320 C19
    (18) IEC 60320 C13
    Nominal Output Voltage
    230V
    Nominal Input Voltage
    200V, 208V, 230V
    Input Connections
    IEC 60309 16 A 2P + E
    Cord Length
    3meters
    Easy PDU,Metered,ZeroU,16A,230V,(18)C13 & (3)C19; IEC309
    Easy Metered Rack Power Distribution Units (Rack PDU) provide real-time remote monitoring, power management of connected loads, and much more features than the average power strip.
    Includes: Installation guide, User manual, Vertical mounting brackets
    • Remote Management Capabilities
      Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
    • Toolless Rack Mounting Capabilities
      Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
    • Vertical Mounting Capabilities
      Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

    Easy Metered Rack PDU Features & Benefits

    Availability

    Flash Upgradeable
    Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.
    Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
    Local Current Monitoring Display
    The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
    Load indicator LED
    Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
    Remote Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

    Agility

    Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
    Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
    Interfaces/Ports
    Network (RJ-45) Yes
    Management
    Management
      • HTTP/HTTPS
      • SNMPV1/V2/V3
      • Modbus-TCP
      • Telnet
    Power Description
    Input Voltage 230 V AC
    Output Voltage 230 V AC
    Input Current 16 A
    Power Rating (VA) 3.68 kVA
    General Information
    Product Type PDU
    Manufacturer Part Number EPDU1116M
    Manufacturer Website Address http://www.schneider-electric.com.au
    Manufacturer Schneider Electric SA
    Product Name Easy Metered Rack 21-Outlets PDU
    Product Line Easy Metered Rack
    Brand Name APC by Schneider Electric
    Technical Information
    Plug/Connector Type IEC 309 16A 2P+E
    Receptacle Type IEC 60320 C19
    IEC 60320 C13
    PDU Type Metered
    Receptacle Detail 3 x IEC 60320 C19
    18 x IEC 60320 C13
    Physical Characteristics
    Weight (Approximate) 2.50 kg
    Mount Type Rack-mountable
    Rack Height 0U
    Height 902 mm
    Width 62 mm
    Depth 44 mm
    Mounting Orientation Horizontal/Vertical/Toolless
