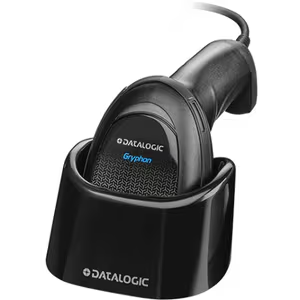

Datalogic GD4520 Kit 2D Mpixel Imager USB-onlyGryphon I GD4520 Kit 2D Mpixel Imager USB-only Black (Kit includes Scanner and USB Cable 90A052258) GD4520-BKK1
Special Price $249.00 Regular Price $286.00
SKU: | 416621 |
---|---|
MPN: | GD4520-BKK1 |
Manufacturer: | https://www.datalogic.com/eng/index.html |
Brand: | Datalogic |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
▼
GD4520 Kit 2D Mpixel Imager USB-onlyGryphon I GD4520 Kit 2D Mpixel Imager USB-only Black (Kit includes Scanner and USB Cable 90A052258)
IMAGING TECHNOLOGYThe Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
TOP TECHNOLOGIES FOR TODAY'S POS
Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix™ motionsensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.
Datalogic distinctive reading technology with highly visible white-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
SIMPLE TO USE AND DEPLOY
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.
The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Specifications
▼
Interfaces/Ports
Host Interface | USB |
Technical Information
Barcode Symbology Supported |
|
Connectivity Technology | Cable |
Scanning Distance | 710 mm |
Image Formats | JPEG |
BMP | |
TIFF | |
Scanner Range | Standard Range |
Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
Image Sensor Type | Imager |
Cable Type Included | USB |
Scanning Capability | 2D |
1D | |
Reading Angle (Skew) | 65° |
Reading Angle (Pitch) | 65° |
Reading Angle (Roll) | 360° |
Motion Tolerance | 889 mm/s |
Maximum Ambient Light | 100000 lux |
Minimum Print Contrast | 15% |
Minimum Element Resolution (Code 39) | 0.13 mm |
Maximum Element Resolution (Code 39) | 0.25 mm |
Minimum Element Resolution (DataMatrix) | 0.25 mm |
Maximum Element Resolution (DataMatrix) | 0.38 mm |
Minimum Element Resolution (PDF417) | 0.25 mm |
Miscellaneous
Application/Usage | Industrial |
Retail | |
Healthcare | |
Transportation | |
Country of Origin | Vietnam |
Environmentally Friendly | Yes |
Physical Characteristics
Weight (Approximate) | 161 g |
Form Factor | Handheld |
Length | 220 mm |
Height | 95 mm |
Width | 110 mm |
Product Color | Black |
General Information
Product Type | Barcode Scanner Kit |
Manufacturer Part Number | GD4520-BKK1 |
Manufacturer Website Address | http://www.datalogic.com |
Packaged Quantity | 2 |
Manufacturer | Datalogic S.p.A |
Product Model | GD4520 |
Product Name | Gryphon GD4520 Handheld Barcode Scanner Kit |
Product Line | Gryphon |
Product Series | GD4500 |
Brand Name | Datalogic |
