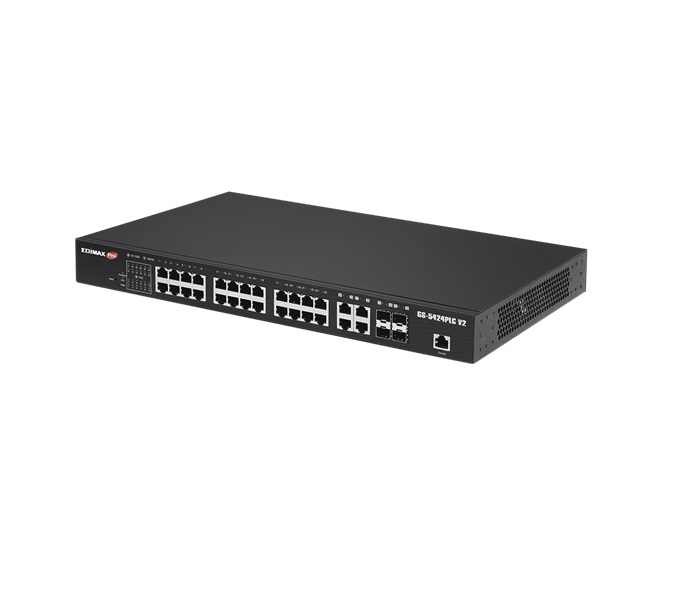

    main product photo

    Edimax POE Switch: 28-Port Gigabit WebSmart Switch 24 PoE+ + 4 Giga-SFP Combo (400W) - Onvif-Q Surveillance GS-5424PLC V2

    $528.00
    SKU:392562
    MPN:GS-5424PLC V2 Link
    Manufacturer:https://www.edimax.com
    Brand: Edimax
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    HARDWARE
    Ports 24 x RJ45 10/100/1000Base-T Gigabit ports
    4 x RJ45/SFP Gigabit combo uplinks
    1 x RJ45 Console port
    Transmission Method Store and forward
    Buttons Reset button
    PoE power budget status selection button
    LED Indicators Per Port: Link/Act
    ​PoE: Act/Status
    Per Unit: Power
    Power Input 100-240V AC, 50-60 Hz, internal power supply
    Total Power Budget 400W
    Fan 2 x Fans with hot-swappable fan tray
    Dimensions (L x W x H) 441 × 270 × 45 mm
    Weight 4.45kg
    PERFORMANCE
    Switching Capacity 56Gbps
    Forwarding Rate 41.6Mpps (64-byte package size)
    MAC Address 8K
    Jumbo Frames 9K Bytes
    Buffer Memory 4.1Mb
    Filtering / Forwarding Rates 1000Mbps port – 1,488,000pps
    100Mbps port - 148,800pps
    10Mbps port - 14,880pps
    POWER OVER ETHERNET
    Standard IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
    Power Output Up to 30W per port
    Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
    Management PoE status, PoE on/off, PoE PD alive check, per port priority setting
    PoE Long Range Guaranteed PoE long range to 200 meters at 10Mbps
    Power Backfeed Protection Built-in
    SMART FEATURES
    Quality of Service (QoS) Rate limiting on packets sent and received by an interface
    Eight queues on each port
    WRR, SP, WRR+SP queue scheduling algorithms
    Re-marking of the 802.1p priority and DSCP priority
    Rate limiting in each queue and traffic shaping on ports
    Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR)
    Port-based CoS
    IP TOS precedence
    802.1p VLAN Information based CoS
    DSCP based CoS
    TCP/UDP Based CoS
    Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP)
    IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    VLAN Up to 200 VLANs and 4096 VLAN IDs
    802.1Q tag-based VLAN
    Port-based VLAN
    Surveillance VLAN
    Voice VLAN
    MAC VLAN
    GVRP
    IPV6 IPv6 over Ethernet (RFC 2464)
    Dual-stack (RFC 4213)
    ICMPv6 (RFC 4884)
    Neighbor discovery (RFC 4861)
    Auto configuration
    Static IPv6 address and prefix length
    Static IPv6 default gateway
    IPv6 duplicate address detection
    Port Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups
    IGMP Snooping IGMP v1/v2/v3 snooping
    Port Mirroring Port mirroring both on ingress and egress traffic
    Security RADIUS
    AAA
    Management Access
    Authentication Manager
    Port Security
    Protected Port
    Storm Control
    DoS
    Dynamic ARP Inspection
    DHCP Snooping
    IP Source Guard
    Management User Interface: Web-based management
    User Account: Login account configuration
    Firmware Upgrade: Firmware upgrade by WEB
    Syslog: Support event log, alarm log and security log
    OTHERS
    Standards IEEE 802.3 10BaseT Ethernet
    IEEE 802.3u 100BaseTX Fast Ethernet
    IEEE 802.3ab 1000BaseT Gigabit Ethernet
    IEEE 802.3z 1000BaseSX/LX
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet (PoE+)
    IEEE 802.3x Full-duplex and flow control
    IEEE 802.1p Quality of Service (QoS)
    IEEE 802.1x Port-based Network Access Control(PNAC)
    IEEE 802.1Q Virtual LANs VLANs
    IEEE 802.1d Spanning Tree Protocol(STP)
    IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)
    IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    IEEE 802.3az Energy Efficient Ethernet
    Environmental Condition Temperature:
      Operating: 0~45°C (32~122°F)
      Storage: -40~70°C (-40~158°F)
    Humidity:
      Operating : 10~90% RH (Non-Condensing)
      Storage: 5~90% RH (Non-Condensing)
    Certifications FCC Class A, CE, ONVIF Compliant
