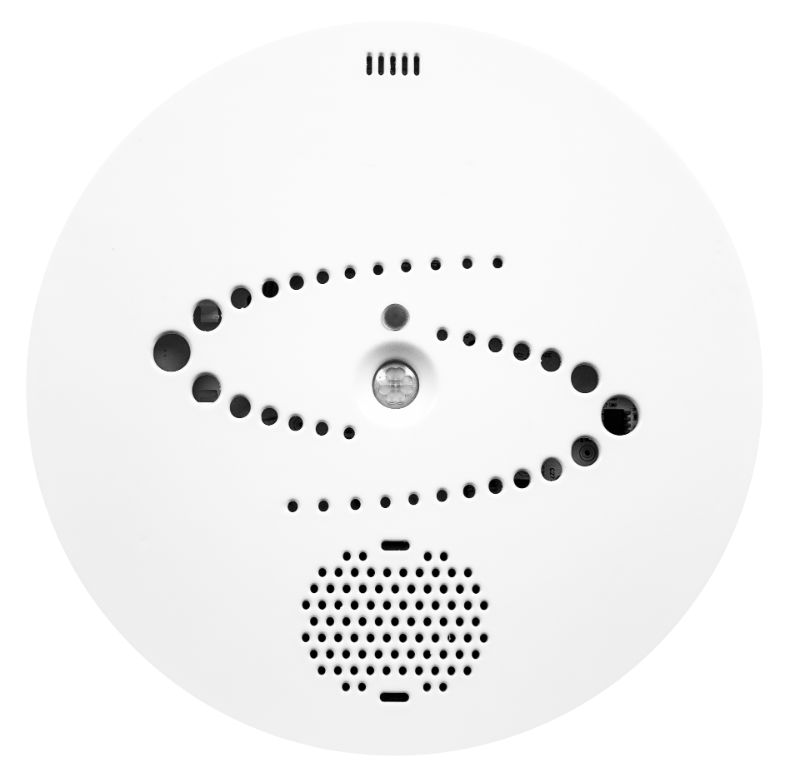

HALO-3C-PC MULTI IOT SENSOR WITH PEOPLE COUNTING AND WIFI 5YR HALO-3C-PC
SKU: | 407237 |
---|---|
MPN: | HALO-3C-PC |
Manufacturer: | https://halodetect.com/ |
Brand: | HALO |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
HALO Smart Sensor 3C is at the forefront of solving ever-evolving safety and security concerns as the industry leader in monitoring facility privacy areas. HALO 3C protects the privacy of individuals as it does not use cameras, record audio, or capture any personally identifiable information (PII), making it the perfect solution for privacy areas such as restrooms and common areas.
New security and environmental monitoring features provide users with even greater levels of security and easier installation. These features add to HALO’s existing features of gunshot detection, noise alerts, and emergency keyword alerting.
Emergency Escape and Alert Lighting:
Halo 3C comes with a literal HALO of LED coloured lighting options that can be programmed to show escape routes for safety such as red, yellow and green pattern. Create unique colors for different alerts such as purple for Air Quality alerts or blue for Health Alerts. The lights are projected onto the ceiling around the HALO for extended visibility.
Motion Detection:
Identify and alert on movement for occupancy and trespassing
Panic Button:
Users can trigger alerts via an external 3rd party panic button or via the HALO cloud app. The location of the trigger is associated to the HALO device in closest proximity.
Occupancy and People Counting:
Identify how many people are within the HALO
Specifications
Operating Temperature | 0°C - 50°C |
Operating Humidity | 0 to 90% Relative Humidity (non-condensing) |
Power Supply | Single HALO 3C, PoE (IEEE 802.3af Class 3 Compliance) 11W |
Dimensions | 5.5” x 2.0” (140mm x 51mm) |
Weight | 0.8 lbs (0.365 kgs) |
Mounting Options | Surface Mount, Pole Mount (optional), Conduit Adapter (optional) |
Vandal | IK8 rated, vandal proof housing with Tamper Alert |
Certifications | UL, CUL, CE, RoHS, FCC, WEEE, NRCS, ACMA, RCA, UKCA,VCCI |
Ethernet In | RJ-45 (10/100 Base-T) |
Ethernet Out | RJ-45 (10/100 Base-T) IEEE 802.3af Class Compliance |
Protocols | BACnet, RTSP, TCP/IP, IPV4/V6, HTTP, HTTPS, DHCP, ARP, Bonjour |
Wireless | 2.4 GHZ IEEE 802.11 b/g/n/ac Wireless |
Bluetooth | Bluetooth 5.0, BLE |
Live Display Resolution | 1024 x 768, IFPS, Live MJPEG or H264, 8 Users maximum |
Audio | MEMS Microphones (2) [Audio Analysis Only] No Recording of Live Stream |
Relay Output | 1, Normally Closed, 48VDC at 1 amp |
Input | 1, Isolated, 12 VDC / 24 VAC |
RS-485 | 1, Integrates wired industrial sensors |
Status Light | Alarm Condition, Multi-Color, Programmable |
Speaker | Alarm Condition, Pre-Recorded Files, Programmable WAV Files |
Emergency Keywords | HALO supports multiple keywords |
Supported Languages | English, Foreign Languages Supported |
