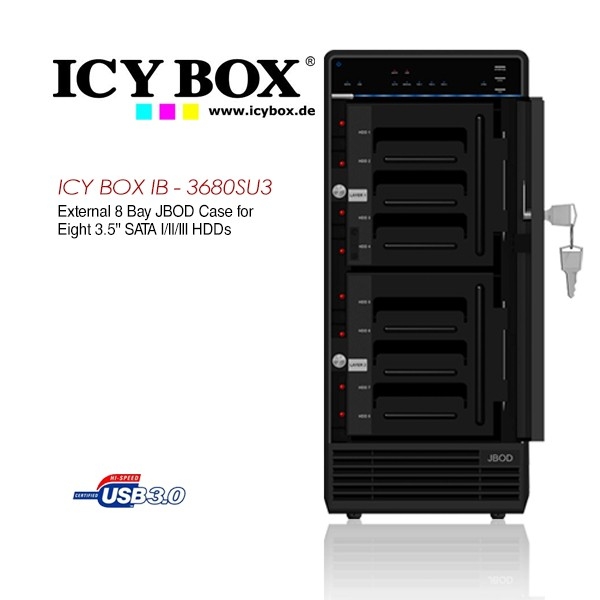

Icy Box (ib - 3680su3) External 8 Bay Jbod Case For 8 X 3.5 Inch Sata L/ Ll/ Lll Hdds Hddicy3680su3
| SKU: | 193412 |
|---|---|
| MPN: | HDDICY3680SU3 |
| Manufacturer: | http://www.icydock.com/index.php |
| Brand: | Icy Box |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
B-3680SU3
External 8 Bay JBOD Case for eight 3.5 inch SATA l/ll/lll HDDs
- Silent operation by thermal controlled fan
- Energy saving by supporting sleep modus
- Easy assembling by trayless design
- HDD capacity unlimited
- External data interface: USB 3.0, eSATA
- Plug & Play and Hot Swap
- Windows 7/8.x, MAC OS X > 10.5
- JBOD (Single)
The external JBOD enclosure can accommodate a total of eight SATA I / II / III hard drives or SSDs. It consists largely of aluminium and is therefore stable and dissipates heat very well. The cooling of the drives is achieved due to two temperature controlled 80mm fan on the back and corresponding air-inlets support below the drive bays on the front. The door of the enclosure can be locked.
The display of the JBOD system informs through various LEDs about operation, fan, interfaces and disk usage. As a huge JBOD data storage system can provide its full function. Except the existing external interfaces USB 3.0 and eSATA the ability to use hard drives without any capacity constraints play a big role as well as .
Among the capabilities of the JBOD enclosure are various other convenient functions. Such as, for example, the strapless hard disk installation and energy-saving standby mode. As well as hot-swap capability, plug & play and support for both Windows and MAC systems.
For users with larger demands the ICY BOX IB-RD3680SU3 enclosure provides support of RAID Level 0 (striping) / 10/5/50 / BIG (Spanning).
Specifications
Specifications:
- Material: Aluminium / Plastic
- HDD size (inch): 8 x 3.5 inch
- HDD size (cm): 3.5 inch
- HDD interface: SATA I/II/III
- HDD capacity: Unlimited
- Hot Swap: Yes
- Plug & Play: Yes
- External data interface: USB 3.0 / eSATA
- Operating system: Windows 7/8, MAC OS X
- Transfer rate: USB 3.0 up to 5 Gbit/s, eSATA up to 3.0 Gbit/s
- Power switch: Yes
- Lock: Yes
- LED: Power, fan, interface, HDD in use, access and error (RAID)
- Power connector: Internal power supply, Input: AC 100 - 240 V, 2 A Output: 5 Vsb/3 A, 12 V/6 A, 12 V/6 A
- Packing content: 1x device, 1x power supply cable, 1x USB 3.0 cable, 1x eSATA cable, 8x handles, 1x set of screws, 1x quick installation guide
- Gross weight (incl. packing): 5.7 kg
- Net weight: 5 kg
- Dimension of packing box: 98x234x240 mm
- Dimension of article: 253x155x352 mm
Vendor Info
IB-3680SU3
External 8 Bay JBOD Case for eight 3.5 inch SATA l/ll/lll HDDs
- Silent operation by thermal controlled fan
- Energy saving by supporting sleep modus
- Easy assembling by trayless design
- HDD capacity unlimited
- External data interface: USB 3.0, eSATA
- Plug & Play and Hot Swap
- Windows 7/8.x, MAC OS X > 10.5
- JBOD (Single)
The external JBOD enclosure can accommodate a total of eight SATA I / II / III hard drives or SSDs. It consists largely of aluminium and is therefore stable and dissipates heat very well. The cooling of the drives is achieved due to two temperature controlled 80mm fan on the back and corresponding air-inlets support below the drive bays on the front. The door of the enclosure can be locked.
The display of the JBOD system informs through various LEDs about operation, fan, interfaces and disk usage. As a huge JBOD data storage system can provide its full function. Except the existing external interfaces USB 3.0 and eSATA the ability to use hard drives without any capacity constraints play a big role as well as .
Among the capabilities of the JBOD enclosure are various other convenient functions. Such as, for example, the strapless hard disk installation and energy-saving standby mode. As well as hot-swap capability, plug & play and support for both Windows and MAC systems.
For users with larger demands the ICY BOX IB-RD3680SU3 enclosure provides support of RAID Level 0 (striping) / 10/5/50 / BIG (Spanning).
Specifications:
- Material: Aluminium / Plastic
- HDD size (inch): 8 x 3.5 inch
- HDD size (cm): 3.5 inch
- HDD interface: SATA I/II/III
- HDD capacity: Unlimited
- Hot Swap: Yes
- Plug & Play: Yes
- External data interface: USB 3.0 / eSATA
- Operating system: Windows 7/8, MAC OS X
- Transfer rate: USB 3.0 up to 5 Gbit/s, eSATA up to 3.0 Gbit/s
- Power switch: Yes
- Lock: Yes
- LED: Power, fan, interface, HDD in use, access and error (RAID)
- Power connector: Internal power supply, Input: AC 100 - 240 V, 2 A Output: 5 Vsb/3 A, 12 V/6 A, 12 V/6 A
- Packing content: 1x device, 1x power supply cable, 1x USB 3.0 cable, 1x eSATA cable, 8x handles, 1x set of screws, 1x quick installation guide
- Gross weight (incl. packing): 5.7 kg
- Net weight: 5 kg
- Dimension of packing box: 98x234x240 mm
- Dimension of article: 253x155x352 mm
