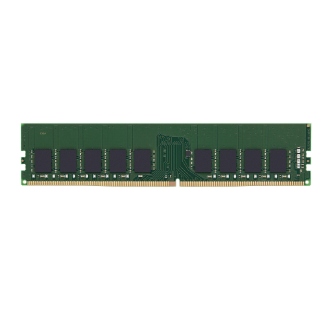

32GB 3200MHz DDR4 ECC CL22 DIMM 2Rx8 Hynix C KSM32ED8/32HC
| SKU: | 417794 |
|---|---|
| MPN: | KSM32ED8/32HC |
| Manufacturer: | https://www.kingston.com/en |
| Brand: | Kingston |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
Kingston's KSM32ED8/32HC is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Feature:
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• Temperature sensor with integrated SPD
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
Specifications
Specifications
| Capacity | 32GB |
| Error Checking | Unbuffered ECC |
| Form Factor | |
| Frequency | 3200MHz |
| Product Family | Server Premier |
| Type | DDR4 |
| Voltage | 1.2v |
| Warranty | Limited Lifetime |
| Compatible SKUs | KSM32ED8/32ME |
