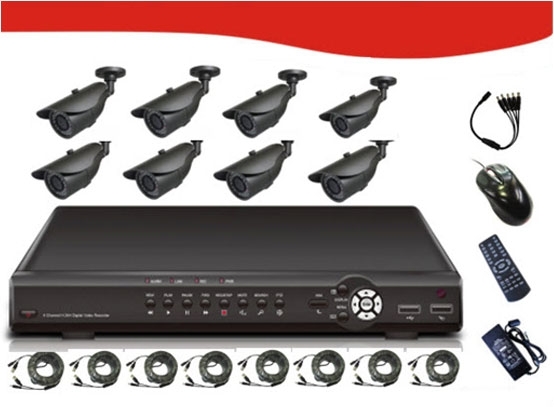

    main product photo

    SIGNAGEiT 8Ch Combo Kits KT86-VT20H42

    Includes 8*1/ 4"Sharp 3.6Mm Rj2421Fa Ccd 420Tv Line Pal:500(H)X582(V) 24*Ir Led 20M Weatherproof Ir/ Ip66 Camera Dvr Cable Sets Ac Cord Kt86-Vt20H42
    $77.00
    SKU:279579
    MPN:KT86-VT20H42
    Brand: Signageit
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Untitled 1
    Features



    • Quick do-it-yourself installation

    • Remote web and smartphone monitoring (Symbian, Windows Mobile, iPhone, Blackberry & Android)

    • 8-channel H.264 Standalone DVR

    • Pentaplex operation: live view, record, playback, backup and network transmission

    • Easily connects to any LCD TV for additional viewing capabilities

    • High quality video CCD cameras with weatherproof housing

    • Night vision cameras allow you to see in complete darkness

    • Free Bundle Surveillance Software

    Untitled 1
    Model NO. KT86-VT20H42
    DVR 1 x 8CH H.264 DVR AS-0860
    Camera 8 x AVT20H42
    BNC Cable 8 x 20M BNC Cable ACB-20DB
    Mouse 1 x USB 2.0 Mouse
    Controller 1 x IR Remote Controller
    Power Cable 1 x 8CH Power Splitter Cable
    Adaptor 1 x 3A Power Adaptor+1x5A Power Adaptor+2xPower Cable (US, EU, UK, AU Plug is Optional)
    Size & Weight 470(L)*270(W)*318(H)mm, 12.5KGS/SET
    Camera Model AVT20H42
    Image Sensor 1/4" SHARP RJ2421FA CCD
    DSP LR38627
    Horizontal Resolution 420TV Lines
    Effective Pixels PAL: 290 KP 500(H)×582(V)                   NTSC: 250KP 510(H)×492(V)
    TV System PAL/NTSC
    Electronic Shutter Time Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec
    Sync System Internal
    Usable Illumination 0.01Lux/F1.2
    S/N Ratio ≥48dB
    Gamma Correction 0.45
    Scanning System PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
    Video Output Composite Signal (1.0Vp-p, 75Ω)
    Lens
    Focus Length 3.6mm (4/6/8/12/16mm is Optional)
    Focus Control Fixed
    Lens Type Fixed
    Pixels 2M Pixels
    Night Vision
    Infrared LED ￠5X24PCS
    Infrared Distance 20M
    IR Status Under 10 Lux By CDS
    IR Power On CDS Auto Control
    Camera Features
    Day/Night Color/ B&W
    OSD Menu Language NO
    Wide Dynamic Range NO
    Backlight Compensation NO
    White Balance AUTO
    Gain Control AUTO
    Noise Reduction NO
    Privacy Masking NO
    Digital Zoom NO
    Picture Adjustment NO
    UTC Support NO
    General
    Weatherproof Housing YES
    Anti-cut Bracket YES, Cable built-in Bracket
    Dual Voltage NO
    IR Cut Filter NO
    Heater NO
    Operation  Temperature -10℃ ~ +50℃ RH95% Max
    Storage Temperature -20℃ ~ +60℃ RH95% Max
    Power Source DC12V±10%, 500mA
    Dimension 168(W) x73.5(H) x65(D)mm
    Weight 500g
    DVR Model AS-0860
    Main Processor Embedded Processor (HI3515)
    Operating System Embedded LINUX
    Video
    Sensor Input 8 Channel, BNC (1.0 Vp-p,75Ω)
    Output 1 TV, 1 VGA
    Audio
    Input 8 Channel, RCA
    Output 1 Channel, RCA
    Alarm
    Input 8 Channel
    Output 1 Channel
    Motion Detection 8 Channel
    E-mail Alarm Send Pieces to The Designated E-mail
    PTZ
    Interface RS485
    Protocol Pelco-D, Pelco-P
    Baud Rate 1200~9600
    Address 0~255
    Display
    TV BNC(1.0 Vp-p,75Ω) resolution: PAL: 704×576, NTSC: 704×480
    VGA Resolution: 800×600, 1024×768, 1280×1024, 1440×900
    Display Split 1/4/9
    Privacy Masking 4 Rectangular Zones (Each camera)
    OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
    Recording
    Video Compression H.264
    Audio Compression ADPCM
    Resolution PAL: D1(704×576), HD1(704×288), CIF(352×288);          NTSC: D1(704×480), HD1(704×240), CIF(352×240)
    Video Quallity Best/Fine/Normal
    Record Rate PAL: D1@25fps/HD1@50fps/ CIF@200fps;         NTSC: D1@30fps/HD1@60fps/ CIF@240fps
    Record Mode Auto(When power on)ManualTimerAlarm
    Playback & Backup
    Sync Playback 1/4/9
    Remote Playback 1 Channel
    Search Mode Channel, Time, Date, Alarm
    Backup Mode USB Device/Network
    Network
    Interface 1 RJ45 10M/100M Adaptive Ethernet Interface, 3G USB Modem
    Network Functions HTTP, IPv4, TCP/IP, UPNP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS
    Web Browser IE6-10, Firefox, Chrom
    CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8/Mac OS
    Extra Stream CIF(6~20fps)
    Smart Phone iPhone, ipad, Windows phone, Android, Blackberry, Symbian
    Hard Disk Driver
    Interface Type 1 SATA Interface
    Capacity Up to 2TB Capacity
    General
    Language English, Italian, Greek, Russian, Polish, Portuguese, Turkish, Spanish, Hebrew, French, German, Japanese, Farsi, Arabic, Thai
    USB Interface 2 USB 2.0 Interface
    Power Supply DC12V/3A
    Working Environment -10℃~55℃/10%~90%RH
    Dimension (W×D×H) 354mm×230mm×45mm
    Weight 4KG (Without HDD)
