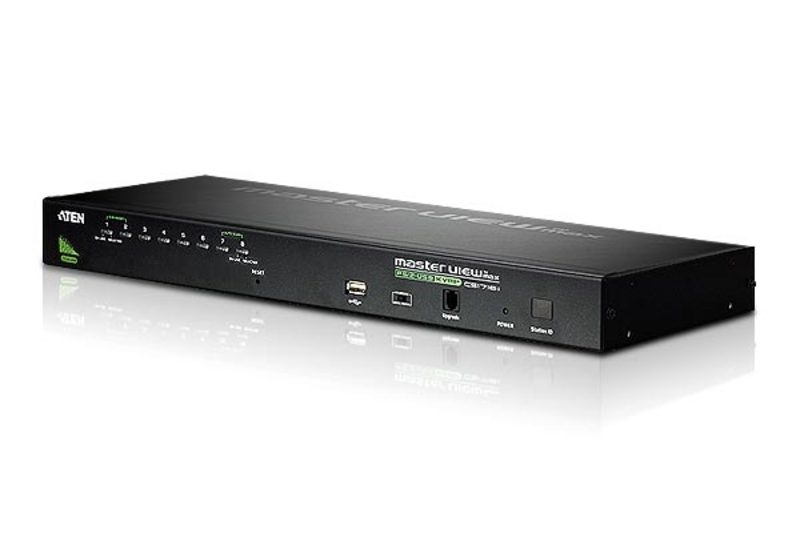

Aten 8 Port Rackmount Usb-Ps/ 2 Vga Kvmp Switch With Usb 2.0 Hub And Daisy Chain (Cs1708A-At-U)
| SKU: | 293556 |
|---|---|
| MPN: | CS1708A-AT-U Link |
| Manufacturer: | https://www.aten.com/au/en/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
•One USB-PS/2 console controls up to 8 computers
•Daisy-chain up to 31 additional units - control up to 256 computers from a
single console
•Front accessible USB port allows each computer to access USB peripherals *
•Dual Interface - supports computers and console with PS/2 or USB keyboards and
mice
•Multiplatform support - Windows, Linux, Mac and Sun
•Video DynaSync™ - stores the console monitor's EDID (Extended Display
Identification Data) to optimize display resolution
•Supports USB keyboards for PC, Mac and Sun
•Auto PS/2 and USB interface detection
•USB / PS/2 keyboard and mouse emulation - computers boot even when the console
focus is elsewhere
•Superior video quality - up to 2048 x 1536; DDC2B
•No software required - convenient computer selection via front panel
pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
•Auto-senses station's position on daisy-chained installations; no need for
manual dip switch setting; front panel led indicates station's position
•Port names automatically reconfigured when station sequence is changed
•Two level password security; only authorized users view and control computers;
up to four users and an administrator with separate profiles for each
•Auto Scan feature for monitoring user-selected computers
•Broadcast Mode - operation simultaneously performed on all selected
computers... etc
•Hot pluggable - add or remove computers without having to power down the switch
•Buzzer on/off via hotkey and OSD
•Firmware upgrades to all the chained KVM switch at the same time via the
daisy-chain cable
•Rack mountable in 19" system rack (1U)
Specifications
| Computer Connections | |
| Direct | 8 |
| Maximum | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |
| Console Ports | 1 x SPHD-18 Male (Yellow) |
| KVM Ports | 8 x SPHD-15/17 Female (Yellow) |
| Daisy Chain Ports |
1 x DB-25 Female (Black) 1 x DB-25 Male (Black) |
| Firmware Upgrade | 1 x RJ-11 Female (Black) |
| USB Port | 1 x USB Type A Female |
| Power | 1 x DC Jack Female (Black) |
| LEDs | |
| Online | 8 (Orange) |
| Selected | 8 (Green) |
| Station ID | 1 x 2-digit, 7-segment (Orange) |
| Power | 1 (Dark Green) |
| Switches | |
| Port Selection | 8 x Pushbutton |
| Firmware Upgrade Recovery | 1 x Slide |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 1 – 255 Seconds (Default: 5 secs) |
| Power Consumption | DC5.3V:3.8W:33BTU |
