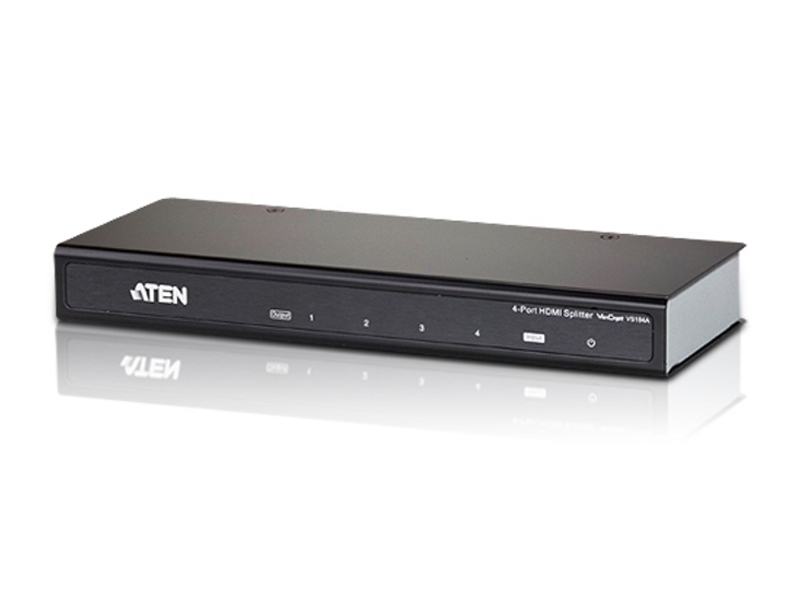

Aten Vancryst 4 Port Hdmi Video Splitter - 4kx2k (ultra Hd) 1080p Or 15m Max Vs184a
| SKU: | 268697 |
|---|---|
| MPN: | VS184A-AT-U Link |
| Manufacturer: | https://www.aten.com/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Package Contents
- 1x VS184A 4-Port HDMI Splitter
- 1x Power Adapter
- 1x HDMI Cable
- 1x User Instructions
- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for
high performance video - Plug-and-play – no software installation required
Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ώ |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | Up to 15 m |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 4 x HDMI Type A Female (Black) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:6.02W:28BTU |
| Environmental | |
| Operating Temperature | 0-50 °C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
Housing
Metal
Weight
0.47 kg ( 1.04 lb )
Dimensions (L x W x H)
20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)
Carton Lot
20 pcs
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
