DESCRIPTION

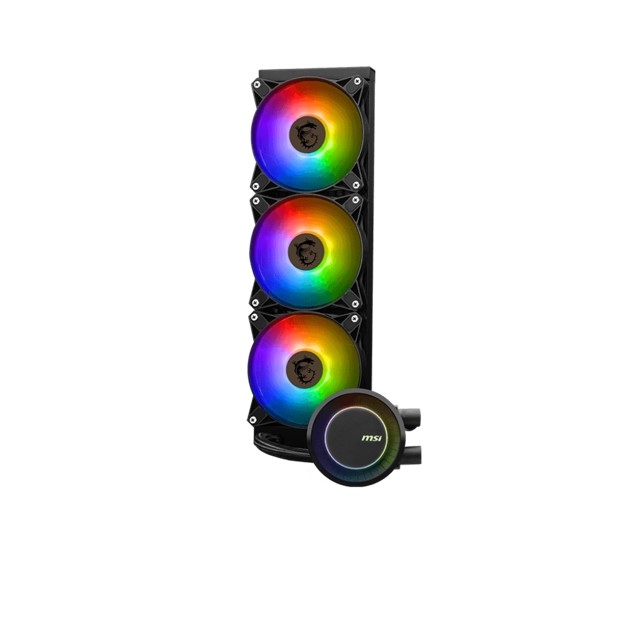

MSI MAG CORELIQUID E360 BlackLiquid CPU Cooler, LGA 1150/1151/1155/1156/1200/1700/LGA 2011/2011-3/2066/AM5/AM4/TR49(NEW)

KEYPOINTS
The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation.
Maximize micro-channels to dissipate heat efficiently
Rotatable water block cap for 270-degree.
ARGB fan can change the lighting by MSI center

SPECIFICATIONS

RADIATOR SIZE
360 mm

RADIATOR DIMENSIONS (WXDXH
394 x 119.2 x 27mm / 15.51 x 4.69 x 1.06 inches

RADIATOR MATERIAL
Aluminum

WATER COOLING TUBE MATERIAL
Black Rubber

NUMBER OF FANS
3

FAN DIMENSIONS (WXDXH)
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches

FAN AIR FLOW
25.5~75.04 CFM

FAN BEARING
Fluid Dynamic Bearing (FDB)

FAN LIFE EXPECTANCY
50,000 hrs@40℃

FAN RATED CURRENT
0.25A(Max:0.4A)

FAN POWER CONSUMPTION
3W(Max:4.8W)

PWM MODE
YES

CABLE LENGTH (PWM CABLE)
550 / 500 mm; 21.65 / 19.69 inches

FAN CONNECTOR
4-Pin

FAN LIGHTING
ARGB

PUMP LIFE EXPECTANCY
200,000 hours in typical use

PUMP NOISE LEVEL
20 dBA (avg.)

PUMP RATED CURRENT
0.25A (Max: 0.5A)

PUMP POWER CONSUMPTION
3W (Max: 6W)

PUMP SPEED
3000 RPM ± 10%

PUMP CONNECTOR
4-pin

COLD PLATE MATERIAL
Copper

BLOCK DIMENSIONS (WXDXH)
41±0.2*47.6±0.2mm

NTEL SOCKET SUPPORT
LGA 1150/1151/1155/1156/1200/1700

AMD SOCKET SUPPORT
AM5/AM4/TR4/sTRx4

ACCESSORIES
1 x 1 to 3 Fan PWM cable
1 x Molex 4-Pin to 4-Pin fan cable
1 x low noise adapter cable
1 x Thermal paste
