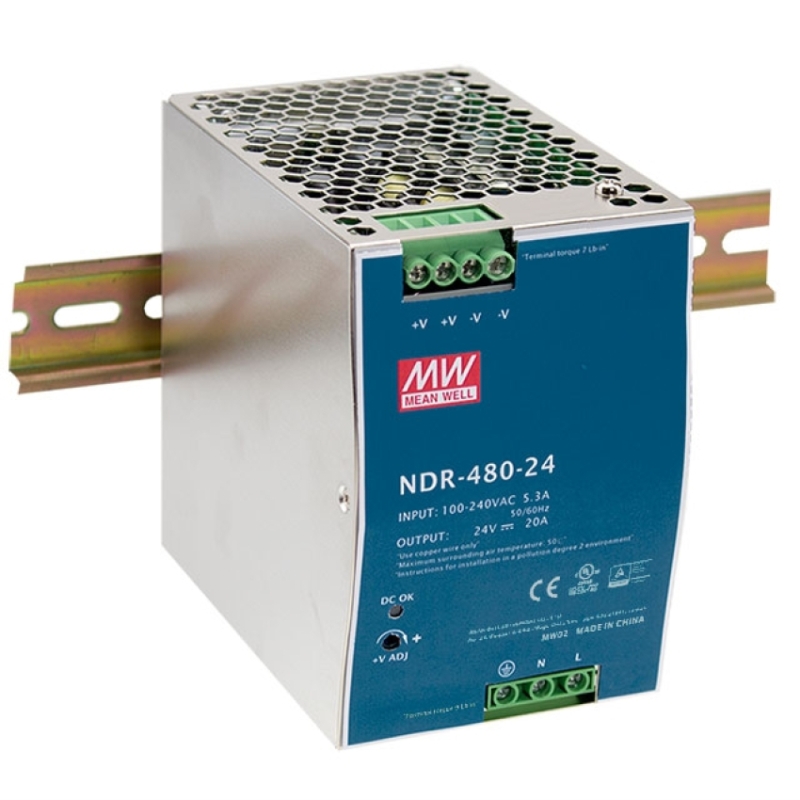

#html-body [data-pb-style=IEESTQP]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Mean Well | NDR-480-24 | 24V DIN Rail Power Supply 20A 480WNDR-480 is one economical slim 480W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.     NDR-480 is designed with a metal housing that enhances the unit's power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20 C and 70 C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1 etc) make NDR-480 a very competitive power supply solution for industrial applications.  FEATURES Universal AC input/ Full range Built-in active PFC function Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 UL 508 (industrial Control equipment) approved BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level 100% full load burn-in test SPECIFICATIONS Output Voltage: 24V Protections: Short circuit/ Overload/Over Voltage/ Over temperature APPLICATIONS Industrial control system Factory automation Electro-mechanical apparatus WARRANTY3-years limited warranty
