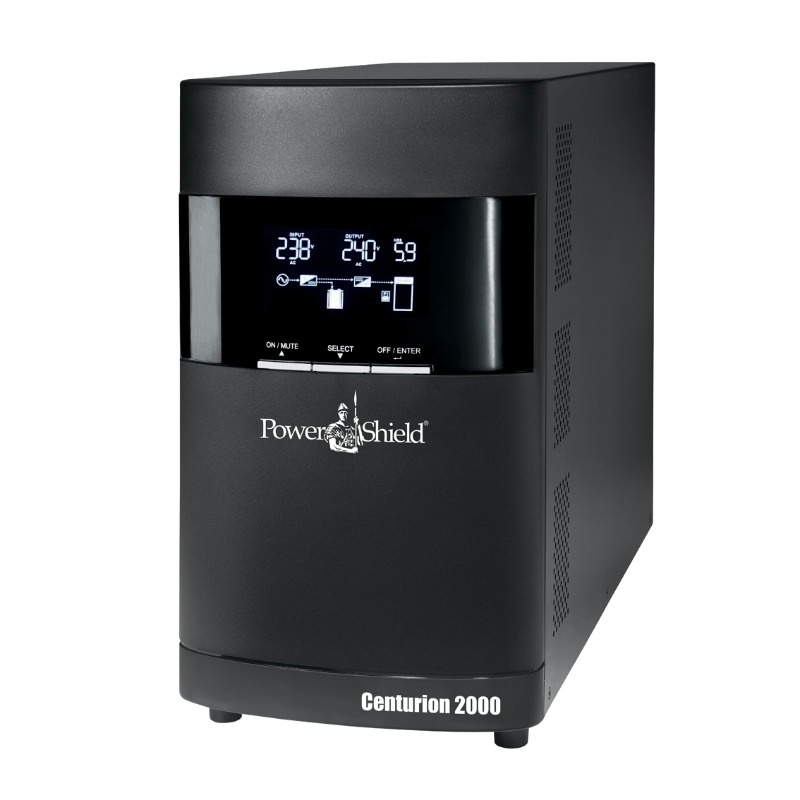

POWERSHIELD CENTURION UPS, 2000VA, 1800W, LCD, USB, C13(2), AU OUTLET(4), 10AMP, 2YR PSCE2000
| SKU: | 419843 |
|---|---|
| MPN: | PSCE2000 |
| Manufacturer: | https://powershield.com.au/ |
| Brand: | POWERSHIEL |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
The Centurion is a True Online Double Conversion UPS designed to provide comprehensive power protection for critical equipment. Versatile software management and hardware options offer the flexibility to build up a power protection solution to fit any application. Meticulously developed by PowerShield engineers to be a world leading technology UPS, the Centurion Tower addresses absolutely all requirements and features as has been demanded by the sophisticated Australian power consumer and hence stands in a class of its own, as a world leading UPS technology Applications that require remote connectivity Feature: True Online Double Conversion Wide input voltage range Input power factor correction 0.98 50Hz/60Hz frequency converter mode Programmable power outlets Emergency power off function (EPO) Optional Eco-mode operation for energy saving Generator compatible Backup time for all models is easily extended by simply plugging additional battery banks Battery banks are available with internal charger to enable fast recharge even with large battery banks USB, RS232, SNMP and AS400 multiple communications available Extendable maintenance bypass available for all models N+X parallel redundancy available for 6K/10K model
Specifications
| Capacity | 2000VA / 1800W |
| Topology | True online double-conversion |
| Nominal Voltage | 200 / 208 / 220 / 230 / 240VAC |
| Voltage Range | 110–300VAC ± 5% at 50% load 160–300VAC ± 5% at 100% load |
| Frequency Range | 40Hz–70Hz |
| Output Voltage | 240VAC (200 / 208 / 220 / 230 / 240VAC – Selectable) |
| Frequency Range (Synchronized Range) | 47–53Hz or 57–63Hz (Auto detect) |
| Frequency Range (Batt Mode) | 50Hz ± 0.1Hz or 60Hz ± 0.1Hz |
| Voltage Regulation | ± 1% |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | > 2% THD (linear load) : > 4% THD (non-linear load) |
| AC Mode to Batt Mode | zero |
| Inverter to Bypass | 4ms (typical) |
| Waveform (Batt Mode) | Pure Sinewave |
| IEC Outlet | 10A, C13 x 2 |
| AU Outlet | 4 |
| AC Mode | 91% |
| ECO Mode | 98% |
| Battery Mode | 89% |
| Battery Type | 12V*9AH(x6) |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max) | 1.5A |
| Full Protection | 1248 Joules / 39000Amps |
| Interface | USB and RS232 as standard. Intelligent slot for PSSNMPV4 or PSAS400 dry contact or PSMBUS |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Display/Alarm | UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indicators |
| Audible Alarm | Battery Mode, Low Battery, Overload, Fault |
| Dimension L x W x H (mm) | 425 x 190 x 335 |
| Weight Nett/Gross (kg) | 25.8 |
| Safety/EMC | EN62040 -1 -1 2003, IEC 60950 -1 -1, EN62040-2 2006 |
| RoHS | Directive 2011/65/EU |
| Warranty | 2 years |
