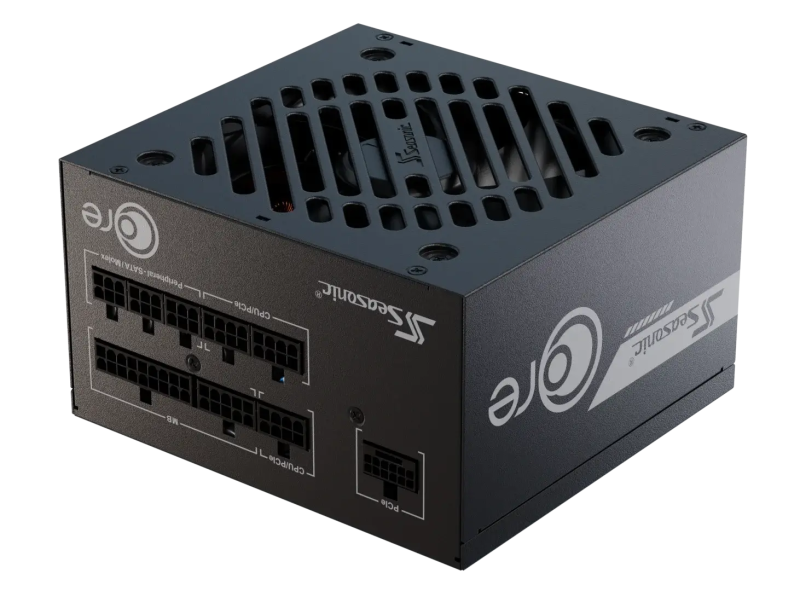

    Seasonic Core GX-850 ATX3 80 Plus Gold Full Modular 850W PSU (SRP-CGX851-A5A32SF)

    $221.00
    SKU:421697
    MPN:PSUSEACOREGX850V2
    Manufacturer:https://seasonic.com/
    Brand: Seasonic
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    CORE GX ATX 3 (2024)
    The updated Seasonic CORE GX ATX3 series complies with the latest ATX3 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic's Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm fluid dynamic bearing fan is combined with Seasonic's Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level.

    SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    ATX/EPS

    Fan Information

    Fan Size

    120 mm

    Fan Control

    Smart and Silent Fan Control

    Fan Bearing

    Fluid Dynamic Bearing

    Life Expectancy

    25,000 hours at 40 °C, 15 % – 65 % RH

    Cable Information

    Modularity

    Fully Modular

    Cable type

    Individual Black Cables with Braided Pattern

    Electrical Features

    Operating Temperature

    0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly)

    MTBF @ 25 °C, excl. fan

    100,000 hours

    AC Input

    Full Range

    Protection

    OPP, OCP, OTP, OVP, SCP, UVP

    Safety and Environmental

    Safety and EMC

    BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA

    Environmental Compliance

    Energy Star, ErP Lot 6, REACH, RoHS, WEEE

    Warranty

    7 Years


    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 11 - 5.5 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    20 A

    20 A

    70 A

    0.3 A

    3 A

    100 W

    840 W

    3.6 W

    15 W

    Total continuous power

    850 W
