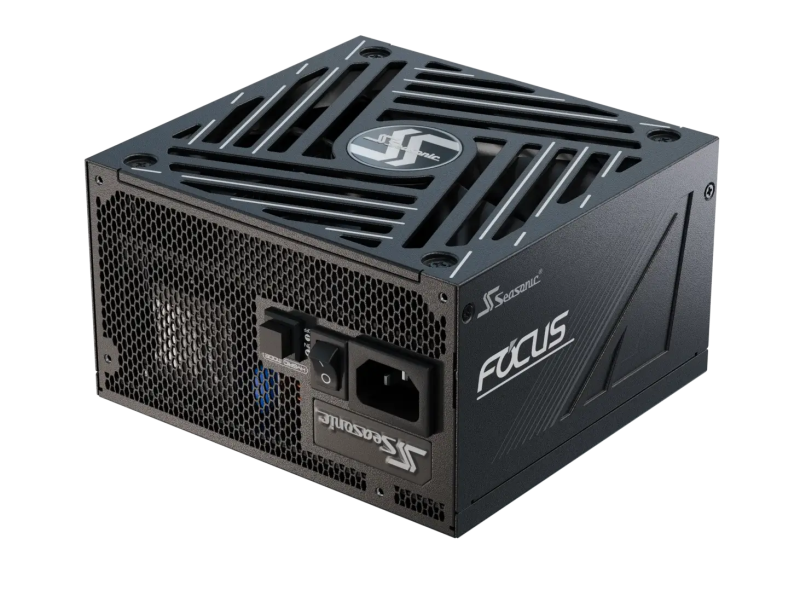

    Seasonic 850W Focus GX-850 V4 Fully-Modular 80 PLUS Gold ATX3.1/PCIe 5.1 PSU

    $259.00
    SKU:419260
    MPN:PSUSEAFOCUSGX850V4
    Manufacturer:https://seasonic.com/
    Brand: Seasonic
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    FOCUS GX ATX 3
    Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2 × 6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.

    SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    ATX/EPS

    Fan Information

    Fan Size

    135 mm

    Fan Control

    Digital Hybrid Fan Control

    Fan Bearing

    Fluid Dynamic Bearing

    Life Expectancy

    50,000 hours at 40 °C, 15 % - 65 % RH

    Cable Information

    Modularity

    Fully Modular

    Cable type

    Individual Black Cables with Braided Pattern

    Electrical Features

    Operating Temperature

    0 - 50 °C

    MTBF @ 25 °C, excl. fan

    100,000 hours

    AC Input

    Full Range

    Protection

    OCP, OPP, OTP, OVP, SCP, UVP

    Safety and Environmental

    Safety and EMC

    CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC

    Environmental Compliance

    Energy Star, ErP Lot 6, REACH, RoHS, WEEE

    Warranty

    10 Years


    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 11 - 5.5 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    20 A

    20 A

    70 A

    0.3 A

    3 A

    100 W

    840 W

    3.6 W

    15 W

    Total continuous power

    850 W
