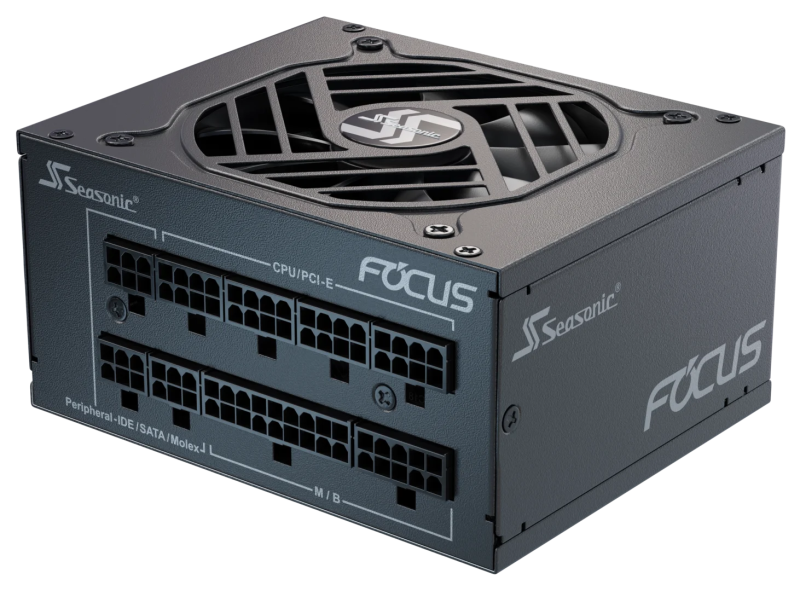

Seasonic FOCUS SGX-750 (2021) 750W Modular 80 Plus Gold PSU
SKU: | 421698 |
---|---|
MPN: | PSUSEAFOCUSSGX750W |
Manufacturer: | https://seasonic.com/ |
Brand: | Seasonic |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
FOCUS SGX (2021)
The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
SPECIFICATIONS
Technical Specifications | ||
80PLUS ® | Gold | |
Cybenetics Efficiency Level | TBA | |
Cybenetics Noise Level | TBA | |
Form Factor | SFX | |
Fan Information | Fan Size | 92 mm |
Fan Control | Premium Hybrid Fan Control | |
Fan Bearing | Fluid Dynamic Bearing | |
Life Expectancy | 50,000 hours at 40 °C, 15% - 65% RH | |
Cable Information | Modularity | Fully Modular |
Cable type | Flat black cables | |
Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly) |
MTBF @ 25 °C, excl. fan | 100,000 hours | |
AC Input | Full Range | |
Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
Warranty | 10 Years |
Power Output | ||||||
AC Input | Voltage: 100 V - 240 V | |||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
100 W | 744 W | 3.6 W | 15 W | |||
Total continuous power | 750 W |
