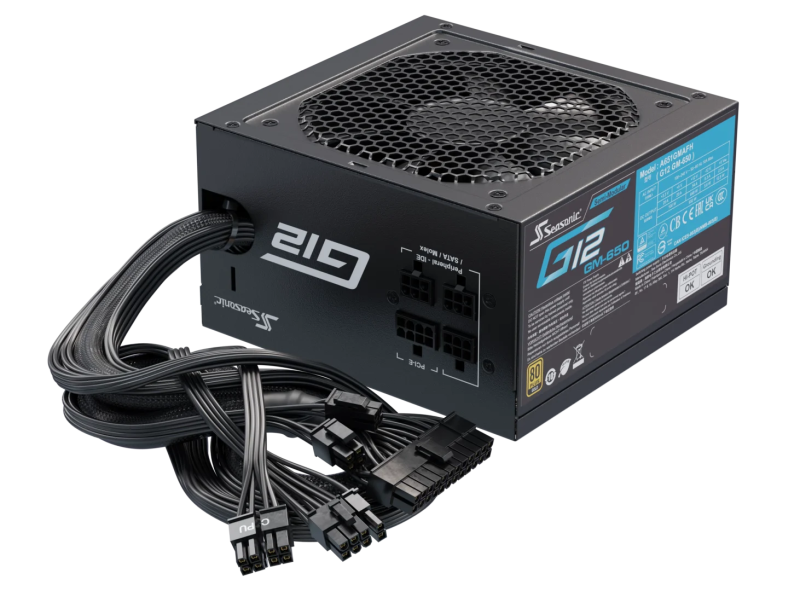

    Seasonic 650W G12 V1.5 GM-650 Semi-Modular 80 PLUS Gold ATX PSU

    $136.00
    SKU:419263
    MPN:PSUSEAG12GM650
    Manufacturer:https://seasonic.com/
    Brand: Seasonic
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    G12 GM
    The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard, providing at least 87%, 90%, and 87% power usage efficiency at 20%, 50%, and 100% operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to reduce energy waste, resulting in savings on energy costs for users. Additionally, the G12 GM units utilize the LLC resonant converter design and the industry's leading Smart and Silent Fan Control (S2FC) for optimal performance and quiet operation.

    SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    ATX/EPS

    Dimensions

    140 mm (L) x 150 mm (W) x 86 mm (H)

    Fan Information

    Fan Size

    120 mm

    Fan Control

    Smart and Silent Fan Control

    Fan Bearing

    Sleeve Bearing

    Life Expectancy

    25,000 hours at 40 °C, 15 % – 65 % RH

    Cable Information

    Modularity

    Semi-Modular

    Cable type

    Black Flat Cables

    Electrical Features

    Operating Temperature

    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)

    MTBF @ 25 °C, excl. fan

    100,000 hours

    AC Input

    Full Range

    Protection

    OPP, OVP, OCP, SCP

    Safety and Environmental

    Safety and EMC

    cTUVus, TUV, CB, CCC, BSMI, CE, FCC

    Environmental Compliance

    Energy Star, RoHS, WEEE, ErP Lot 6, REACH

    Warranty

    5 Years


    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 8 - 4 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    20 A

    20 A

    54 A

    0.3 A

    2.5 A

    100 W

    648 W

    3.6 W

    12.5 W

    Total continuous power

    650 W
