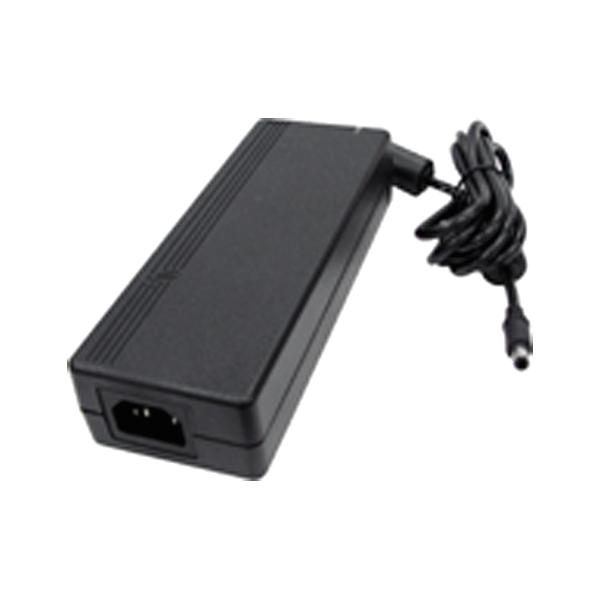

Seasonic Wall Mount Switching Adapter (ssa-1201-24) Psuseassa-1201-24
$93.00
| SKU: | 138266 |
|---|---|
| MPN: | PSUSEASSA-1201-24 |
| Manufacturer: | http://www.seasonic.com/co/index.jsp |
| Brand: | Seasonic |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Features:
- Universal input
- Japanese Capacitor
- High efficiency 87%
- Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
- Over voltage protection
- Over current protection
- Short circuit protection
- Over Thermal protection
- No load consumption≦0.5W
Specifications
▼
Output Specifications:
|
Model |
Output power |
Min. Load |
Max. Load |
Total power |
Efficiency |
|
SSA-1201-24 |
24V |
0A |
5 |
120W |
87% |
Dimension:
General Specifications:
- Input voltage range: 90~264 Vac
- Input frequency: 47~63 Hz
- Input current: 2A (rms)
- Efficiency: ≧87% Average
- Leakage current: 3.5mAa max.
Safety:
|
Safety |
EMI/EMC |
|||||||||||||||
|
CEC |
CB |
CUL |
UL |
CCC |
DEMKO |
FIMKO |
NEMKO |
SEMKO |
TUV |
cTUVus |
VDE |
PSE |
BSMI |
C-tick |
CE |
FCC |
|
V |
V |
V |
|
V |
|
|
|
|
V |
|
|
V |
V |
V |
V |
V |
- (V = certificate ready ; P = certificate pending; V * = not apply to all models )
Vendor Info
▼
Features:
- Universal input
- Japanese Capacitor
- High efficiency 87%
- Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
- Over voltage protection
- Over current protection
- Short circuit protection
- Over Thermal protection
- No load consumption≦0.5W
Output Specifications:
Model | Output power | Min. Load | Max. Load | Total power | Efficiency |
SSA-1201-24 | 24V | 0A | 5 | 120W | 87% |
Dimension:
General Specifications:
- Input voltage range: 90~264 Vac
- Input frequency: 47~63 Hz
- Input current: 2A (rms)
- Efficiency: ≧87% Average
- Leakage current: 3.5mAa max.
Safety:
Safety | EMI/EMC | |||||||||||||||
CEC | CB | CUL | UL | CCC | DEMKO | FIMKO | NEMKO | SEMKO | TUV | cTUVus | VDE | PSE | BSMI | C-tick | CE | FCC |
V | V | V |
| V |
|
|
|
| V |
|
| V | V | V | V | V |
- (V = certificate ready ; P = certificate pending; V * = not apply to all models )
