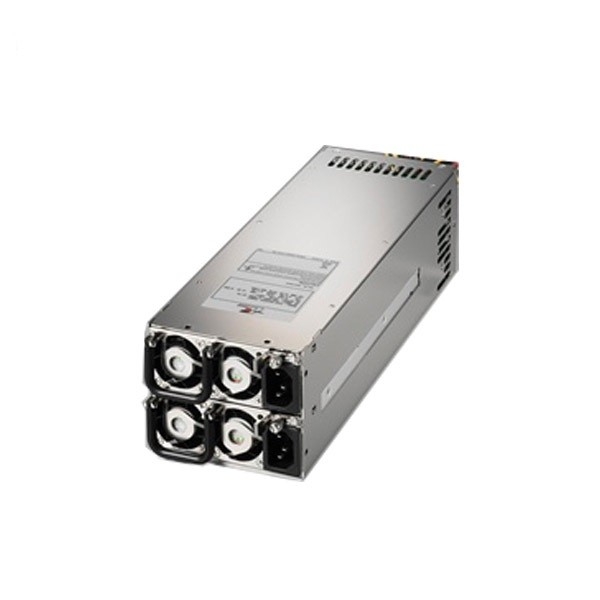

    main product photo

    Zippy 2u Redundant Psu 760w G1w2-5760v3v Psuzipg1w25760v3v

    $719.00
    SKU:249616
    MPN:PSUZIPG1W25760V3V Link
    Manufacturer:http://www.zippy.com/index.aspx
    Brand: Zippy
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    * TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
    * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
    * EFFICIENCY: >80% TYPICAL AT 230 VAC FULL LOAD
    * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
    * REMOTE ON/OFF CONTROL
    * OVER POWER PROTECTION:110%~150%
    * OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V;
    * SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
    * OVER CURRENT PROTECTION: +5V→35~48A, +12V→68~99A, +3.3V→35~48A
    * SAFETY: TO MEET UL, CUL, TUV, CB
    * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
    * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
    * WARMING METHOD: BUZZER SOUND, TTL, FAULT LED

    300x101.2x84(mm)
    11.81x3.98x3.31(inch)

    　
    VOLTAGE: 100V ~ 240VAC (WITH ± 10% TOLERANCE)
    FREQUENCY: 47Hz ~ 63Hz
    INPUT CURRENT: 11/5.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE
    INRUSH CURRENT: 60/80A @ 115/230VAC (25℃)
    POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD

    　
    Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
    +5V 0.5 32 ±5% ± 1% 50mV
    +12V 2 62 ± 5% ± 1% 120mV
    -12V 0 0.8 ± 10% ± 1% 120mV
    +3.3V 0.5 32 ± 5% ± 1% 50mV
    +5VSB 0.1 3.5 ± 5% ± 1% 50mV
    +5V AND +3.3V TOTAL OUTPUT MAX: 190W
    TOTAL OUTPUT MAX: 760W

    Featurs

    • TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
    • HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
    • EFFICIENCY: >80% TYPICAL AT 230 VAC FULL LOAD
    • POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
    • REMOTE ON/OFF CONTROL
    • OVER POWER PROTECTION:110%~150%
    • OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V;
    • SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
    • OVER CURRENT PROTECTION: +5V→35~48A, +12V→68~99A, +3.3V→35~48A
    • SAFETY: TO MEET UL, CUL, TUV, CB
    • LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
    • EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
    • WARMING METHOD: BUZZER SOUND, TTL, FAULT LED

    specification

    • VOLTAGE: 100V ~ 240VAC (WITH ± 10% TOLERANCE)
    • FREQUENCY: 47Hz ~ 63Hz
    • INPUT CURRENT: 11/5.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE
    • INRUSH CURRENT: 60/80A @ 115/230VAC (25℃)
    • POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD

    Dimension

    300x101.2x84(mm)
    11.81x3.98x3.31(inch)
