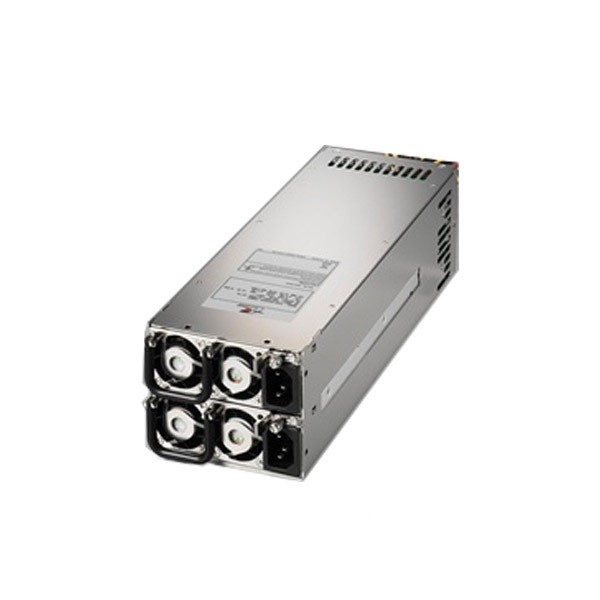

Zippy 2u Redundant Psu 960w G1w2-5960v3v Psuzipg1w25960v3v
$896.00
| SKU: | 268074 |
|---|---|
| MPN: | PSUZIPG1W25960V3V |
| Manufacturer: | https://www.zebra.com/ |
| Brand: | Zippy |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Featurs
- TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
- HOLD UP TIME: 12 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
- EFFICIENCY: >80% TYPICAL AT 115 VAC FULL LOAD, 20%~100% MAX LOAD.
- POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
- REMOTE ON/OFF CONTROL
- OVER POWER PROTECTION:110%~160%
- OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V
- SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
- OVER CURRENT PROTECTION: +5V→35~48A, +12V→86~117A, +3.3V→35~48A
- SAFETY: TO MEET UL, CUL, TUV, CB
- LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
- EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
- WARMING METHOD: BUZZER SOUND, TTL, FAULT LED
Specifications
▼
specification
- VOLTAGE: 100V ~ 240VAC (WITH ± 10% TOLERANCE)
- FREQUENCY: 47Hz ~ 63Hz
- INPUT CURRENT: 14/7A MAX AT ANY LOW/HIGH INPUT VOLTAGE
- INRUSH CURRENT: 60/80A @ 115/230VAC (25℃)
- POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD
Dimension
300x101.2x84(mm)
11.81x3.98x3.31(inch)
Vendor Info
▼
Featurs
- TEMPERATURE RANGE: OPERATING: 0â ~ 40â, STORAGE: -20â ~ 80â
- HOLD UP TIME: 12 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
- EFFICIENCY: >80% TYPICAL AT 115 VAC FULL LOAD, 20%~100% MAX LOAD.
- POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
- REMOTE ON/OFF CONTROL
- OVER POWER PROTECTION:110%~160%
- OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V
- SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
- OVER CURRENT PROTECTION: +5V→35~48A, +12V→86~117A, +3.3V→35~48A
- SAFETY: TO MEET UL, CUL, TUV, CB
- LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
- EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
- WARMING METHOD: BUZZER SOUND, TTL, FAULT LED
specification
- VOLTAGE: 100V ~ 240VAC (WITH ± 10% TOLERANCE)
- FREQUENCY: 47Hz ~ 63Hz
- INPUT CURRENT: 14/7A MAX AT ANY LOW/HIGH INPUT VOLTAGE
- INRUSH CURRENT: 60/80A @ 115/230VAC (25â)
- POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD
Dimension
300x101.2x84(mm)
11.81x3.98x3.31(inch)
