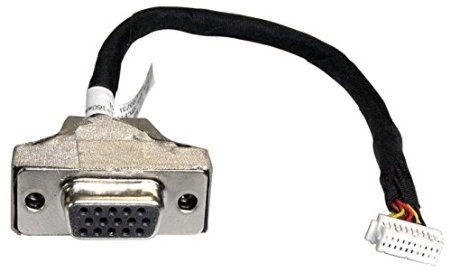

    Shuttle Vga Cable For 81/ 170 Pvg01

    $13.00
    SKU:213463
    MPN:PVG01 Link
    Manufacturer:http://global.shuttle.com/main/index
    Brand: Shuttle
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    PVG01

    VGA port expansion kit for Shuttle Slim-PCs

    The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For the 1L slim PCs this also means only one serial interface (COM 1) can be used afterwards.
    Note: Slim PCs with H81/H110 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.
    　
    • Scope of delivery:
      -       Adapter PVG01
      - Installation guide
      - Two screws
    • Specifications:
      Internal adapter cable, Cable length: 160 mm
      Back panel connector: 15-pin Mini D-Sub female socket (DE15)
      Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female
    • Compatibility:
      Compatible to
      - Shuttle XPC slim (1L):  DS81, DS87, DH110, DH170
      - Shuttle XPC slim (3L): XH81, XH81V, XH110, XH110V
    PVG01
    VGA port expansion kit for Shuttle Slim-PCs

    The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards.
    Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.
    Scope of delivery:
    - Adapter PVG01
    - Installation guide
    - Two screws
    Specifications:
    Internal adapter cable, Cable length: 160 mm
    Back panel connector: 15-pin Mini D-Sub female socket (DE15)
    Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female
    Compatibility:
    Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V
    Full spec: http://www.shuttle.eu/products/xpc-accessories/pvg01/
