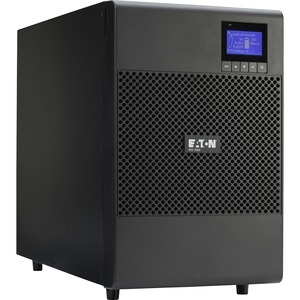

Eaton 9Sx 3000Va/ 2700W On Line Tower Ups 240V 9Sx3000I-Au
$4,777.00
| SKU: | 281242 |
|---|---|
| MPN: | 9SX3000I-AU Link |
| Manufacturer: | http://powerquality.eaton.com |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Tower |
| Part Number | 9SX3000I-AU |
| Rating (VA/Watts) | 3000/2700 |
| Dimensions (H x W x D, mm) | 346 x 214 x 412 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C20
 |
| Input Voltage Range | 200-276V without derating (up to 140-276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Output Receptacles |
(1) IEC-320-C19
(5) Aust. 16A
 |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Battery | |
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <45dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM |
Vendor Info
▼
Eaton 9SX 3000VA/2700W On Line Tower UPS, 240V
