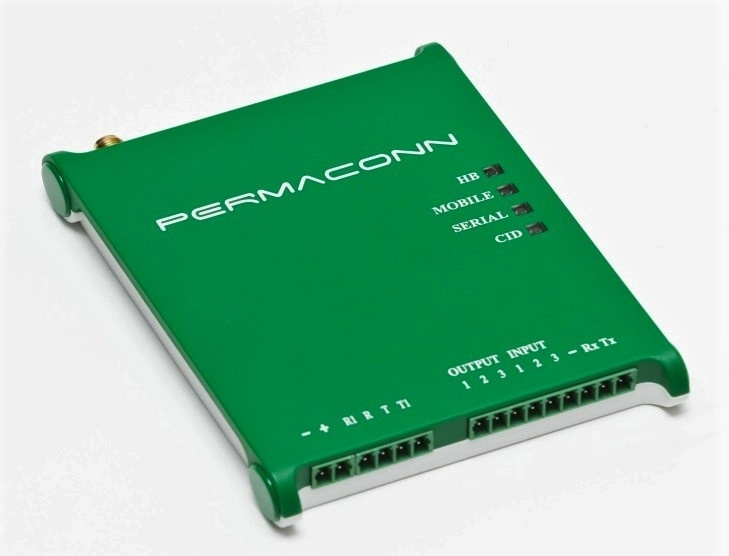

PERMACONN S117283 PM24 SINGLE SIM CAT-M1 COMM 2YR
| SKU: | 394603 |
|---|---|
| MPN: | S117283 |
| Manufacturer: | https://permaconn.com/ |
| Brand: | PERMACONN |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
e smallest and most cost effective single SIM Communicator in Australia.
This Communicator is compatible with any Contact ID enabled alarm panel.
The PM24 incorporates the latest technology available today - alarms and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.
Key Features
- Innovative: Uses latest Cat M1 network designed for machine-to-machine comms
- Higher Performance: Longer range and 20% greater penetration into buildings
- Lower Power Consumption: Easily powered by the alarm panel
- No Drilling or Screws: Attaches magnetically to alarm panel enclosure
- Smartphone Control: Works with Pocket Secure and Atlas
Additional Features
- Small size - Fits inside alarm panel enclosure and suitable for ATM & M2M applications
- Secure VPN within Telstra network - Dedicated for Permaconn events only
- AES128 encryption for alarm data - Secure alarm signalling
- Various diagnostic LEDs - Easy installation
- Activate, control and diagnose PM24 using Atlas portal - Seamless installation process
- Internal watchdog reset function - No unnecessary service call-outs
- Monitors & reports dialler interface lead status - secure interface from alarm panel dialler to Permaconn
- Outputs can be configured to arm/disarm alarm system, control gates and lights. ‘Pocket Secure’ smartphone app controls these functions
Specifications
| Housing Material: | ABS plastic - Green |
| Dimensions: | 108mm (H) x 15.5mm (D) 80mm (W) |
| Weight: | 80g |
| Cat : | M1 |
| LTE FDD: | B3 / B28 |
| Modem: | Quectel BG96 |
| Power: | 8–15V DC Terminal Supply |
| Power Consumption: | Standby: 0.04A @13.8v DC, Transmitting: 0.19A @13.8v DC |
| Auxiliary Input: | 3x 24hr inputs – state change Detected every second EOL 3.3K |
| Auxiliary Output: | 3x Open Collector outputs @ 50mA (max) |
| Function: | Control using Atlas web portal and/or “Pocket Secure” App |
| Data Security: | AES128 Encryption |
| Approvals: | EN62311: 2008, AS/NZS 2772.2: 2016, AS/NZS 60950.1:2015 AS/NZS CISPR 22: 2009+A1: 2010 AS/CA S042.4: 2015, AS/NZS 60950.1:2015 EN 55032: 2015, EN 55024: 2010+A1:2015 EN 61000-3-2: 2014, EN 61000-3-3: 2013 ETSI EN 301 489-1 V 2.1.1 (2017-02) Draft ETSI EN 301 489-52 V1.1.0 (2016-11) ETSI EN 301 908-1 V11.1.1(2016-07) ETSI EN 301 908-2 V11.1.1(2016-07) ETSI EN 301 908-1 V11.1.1 (2016-07) ETSI EN 301 908-13 V11.1.1 (2016-07), EN62479: 2010 EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
