The Permaconn solution provides a constant secure link between the supervised premises and the Central Station.

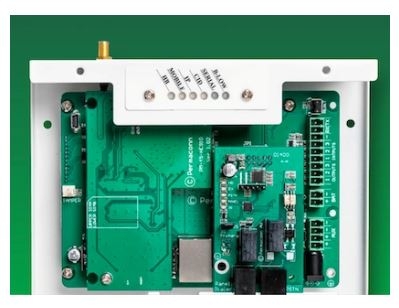

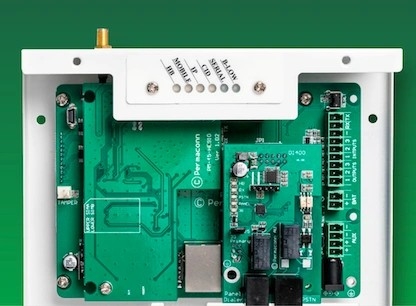

The PM1048 is a versatile alarm communicator that reports on 4G / 3G, IP and PSTN (optional) to the Central Station.

This unit can interface with a range of alarm panels using Contact ID. Alarm messages are sent using the clients ISP and are received by any Central Station that has the Permaconn solution installed.

Primary alarm path is 4G / 3G or IP if Ethernet cable fi tted, with PSTN backup when DI400 module installed.

Key Features

- Remote ‘over-the-air’ alarm panel Upload/Download using 4G / 3G or IP connection
- Serial input for STU interfaces
- Dual SIM + IP + PSTN alarm communicator
- Plug & Play solution
- 3 inputs + 3 outputs, function control using Atlas or Pocket Secure
- Interfaces with any Contact ID alarm panel
- Supplied in robust metal enclosure

Additional Features

- Secure VPN within Optus & Telstra networks – Dedicated for Permaconn events only
- AES128 encryption for alarm data – Secure transmissions over the public internet
- Various diagnostic LEDs – Easy installation
- Activate, commission and diagnose using Atlas – Seamless installation process
- Two dedicated wireless paths of communication as standard – Uptime in excess of 99.9%
- Ability to connect phone line if DI400 module installed – Four (4) paths of communication
- On board battery charger circuit – Backup battery can be fi tted for standalone operation
- Internal watchdog reset function – No unnecessary service call-outs
- Monitors & reports dialler interface lead status – Panel dialler to Permaconn interface secure
- Monitors and reports DC power and battery status – Reliable standalone operation
- Compliant to AS/NZ2201.5:2008
