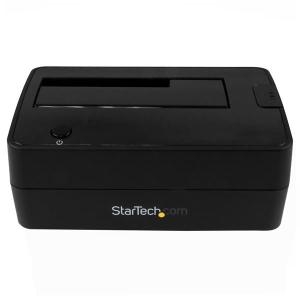

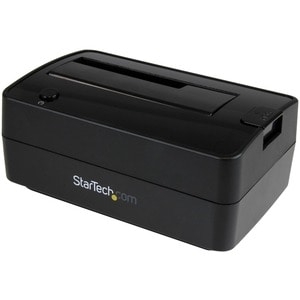

Startech Dock Your 2.5in Or 3.5in Sata Drive Over High Performance Usb 3.1 Gen 2 With Uasp - 1-drive
| SKU: | 225995 |
|---|---|
| MPN: | SDOCKU313 Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female |
| Environmental | |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 5?C to 35?C (35?F to 95?F) |
| Storage Temperature | -20?C to 50?C (-4?F to 122?F) |
| Hardware | |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | ASMedia - ASM1351 |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Fan(s) | No |
| Interface | USB 3.1 Gen 2 |
| Number of 2.5 inch bays | 2 |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Power & Activity |
| Packaging Information | |
| Shipping (Package) Weight | 804 g [28.4 oz] |
| Performance | |
| 4Kn Support | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 6TB at 7200 RPM |
| Maximum Data Transfer Rate | 10 Gbps |
| TRIM Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 63.6 mm [2.5 in] |
| Product Length | 144.8 mm [5.7 in] |
| Product Weight | 398 g [14 oz] |
| Product Width | 92.7 mm [3.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8 |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Power Adapter Plugs (NA,EU,UK,ANZ) |
| Quick Install Guide | |
| Universal Power Adapter - 50 inches (cable) | |
| USB 3.1 A to B cable - 40.5 inches | |
| USB 3.1 HDD Dock | |
