APC Smart-UPS Line Interactive 3000VA, Lithium-ion, Rack/, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect+SmartSlot, AVR, LCD SMTL3000RMI2UC
SKU: | 424049 |
---|---|
MPN: | SMTL3000RMI2UC |
Manufacturer: | https://www.apc.com/au/en/ |
Brand: | Apc |
Warranty: | Standard Manufacturer's Warranty |
Availability: | Preorder 2-3 weeks |
Fright Estimate |
Description

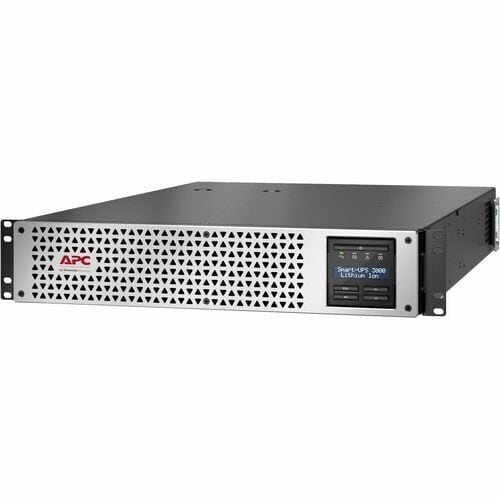

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 3000VA/2700W line interactive sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Specifications
Display & Graphics | |
Display | LCD |
Warranty | |
Additional Warranty Information | 5 year repair or replace and 5-year warranty on the Lithium-ion battery. |
Interfaces/Ports | |
USB | Yes |
Network (RJ-45) | Yes |
Serial Port | Yes |
EPO Port | Yes |
Environmental Conditions | |
Sound Emission | 55 dB |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3.05 km |
Maximum Storage Elevation | 7.62 km |
Management | |
Network Management | RS-232 |
SmartSlot | |
SmartConnect | |
Alarm | Low Battery |
On Battery | |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
China Restriction of Hazardous Substances (China RoHS) | |
Battery Information | |
Battery Life | 10 Year |
Battery Chemistry | Lithium Ion (Li-Ion) |
Backup/Run Time (Half Load) | 11.52 Minute |
Backup/Run Time (Full Load) | 5.32 Minute |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 2 Hour |
General Information | |
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMTL3000RMI2UC |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Packaged Quantity | 1 |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS 3000VA Rack-mountable UPS |
Product Line | Smart-UPS |
Brand Name | APC by Schneider Electric |
Physical Characteristics | |
Weight (Approximate) | 33.30 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 86 mm |
Width | 432 mm |
Depth | 683 mm |
Product Color | Silver |
Black | |
Color Family | Dual Colour |
Mounting Preference | Lower |
Power Description | |
Circuit Breaker | Yes |
Input Voltage | 230 V AC |
Output Voltage | 240 V AC |
230 V AC | |
220 V AC | |
Surge Energy Rating | 739 J |
Waveform Type | Pure Sine Wave |
Input Voltage Range | 160 V AC - 286 V AC |
Output Frequency | 50 Hz |
60 Hz | |
Input Frequency | 50 Hz |
60 Hz | |
Load Capacity (VA) | 3 kVA |
Load Capacity (Watt) | 2.70 kW |
Technical Information | |
Application/Usage | POS |
Network | |
Network Device | |
Electronic | |
Hub | |
Hyperconverged Infrastructure (HCI) | |
IT | |
Router | |
Server | |
Switch | |
Virtual Machine | |
Office | |
Network Equipment | |
Network Closet | |
Features | Audible Alarm |
Surge Suppression | Yes |
Plug/Connector Type | IEC 60320 C20 |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 | |
AVR | Yes |
Transfer Time | 10 ms |
Receptacle Detail | 1 x IEC 60320 C19 |
8 x IEC 60320 C13 |
