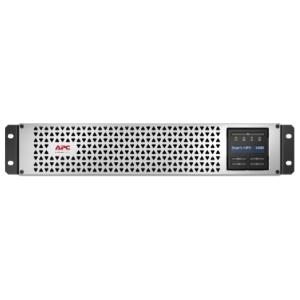

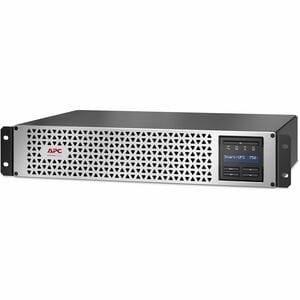

Apc - Schneider Smart-UPS Lithium Ion Short Depth 750VA 230V with SmartConnect SMTL750RMI2UC
$1,772.00
| SKU: | 371941 |
|---|---|
| MPN: | SMTL750RMI2UC |
| Manufacturer: | https://www.apc.com/au/en/ |
| Brand: | Apc - Schneider |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
APC Smart-UPS Lithium Ion, Short Depth 750VA, 230V with
SmartConnect. Intelligent and efficient network power protection
from entry level to scaleable runtime. Ideal UPS for servers,
point-of-sale, routers, switches, hubs and other network
devices.
Guides & Documents
Specifications
▼
Controls/Indicators
| Status Indicators |
LED Status Indicators:
|
Miscellaneous
| Environmentally Friendly | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Management
| Network Management | USB |
| Alarm | Low Battery |
| On Battery | |
| Configurable Delay |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 14.70 Minute |
| Backup/Run Time (Full Load) | 6 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
Technical Information
| Application/Usage | Switch |
| Server | |
| Router | |
| POS Terminal | |
| Network Hub | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | NEMA 5-15R |
| IEC Jumper | |
| IEC 60320 C13 | |
| AVR | Yes |
| Transfer Time | 6 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 2 x IEC Jumper | |
| 6 x NEMA 5-15R |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 750VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
Physical Characteristics
| Weight (Approximate) | 17.69 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 438 mm |
| Depth | 318 mm |
Environmental Conditions
| Sound Emission | 41 dB(A) |
| Thermal Dissipation | 70 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 7.50 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -10°C - 40°C |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Load Capacity | 750 VA/600 W |
| Surge Energy Rating | 645 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC 286 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
